Introduction to Steel pipe heating furnace and forging furnace working principle

Steel pipe heating furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，has been favored by more and more customers.。

1、Brief introduction of Steel pipe heating furnace

Steel pipe heating furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.。

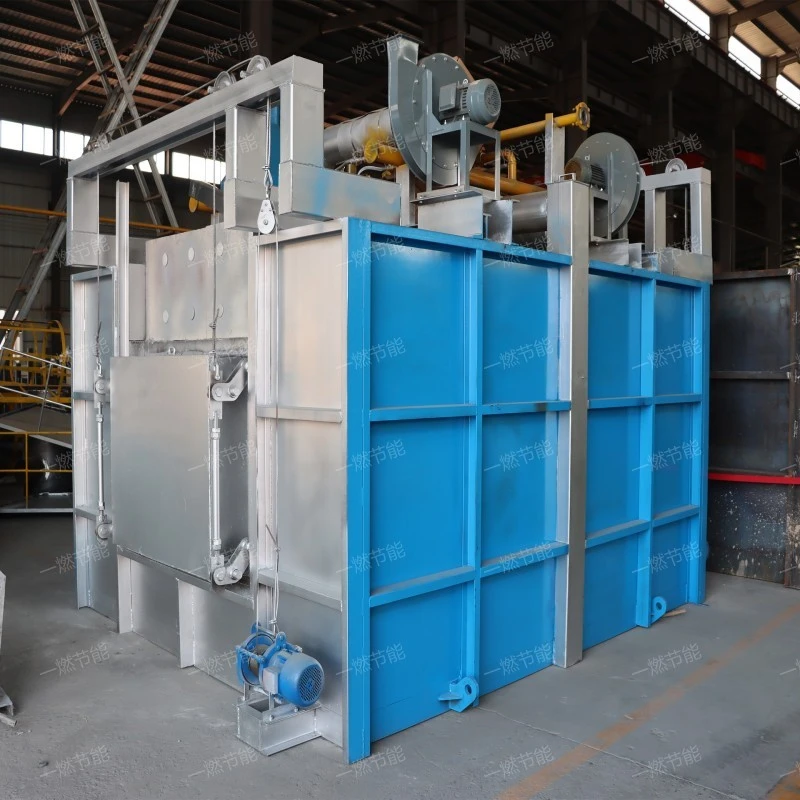

Steel pipe heating furnace

2、Steel pipe heating furnace advantage

The advantages of Steel pipe heating furnace are as follows:

1. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

2. Rapid temperature rise

The Steel pipe heating furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

3. Multiple fuel options

Although the Steel pipe heating furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

4. Extend the service life of equipment

The Steel pipe heating furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

5. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

Steel pipe heating furnace

3、Steel pipe heating furnace structure

The Steel pipe heating furnace structure is introduced as follows:

1. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

2. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

3. furnace chamber

A space for holding metallic materials for heating.

4. Radiation chamber

The heat load of the main place for Steel pipe heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

Steel pipe heating furnace

4、Steel pipe heating furnace explanation video

You can buy Steel pipe heating furnace according to your needs and show you Steel pipe heating furnace videos.。

Steel pipe heating furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd The structural design is simple, novel and special.，it has the structure of convection chamber, recovery of waste heat, ventilation system, combustor and combustor。

5、Steel pipe heating furnace real shot picture

A high-definition picture list of Steel pipe heating furnace is available for our customers to visit. The physical visit can be made to the factory. The address of the visit is Jinan, Shandong province, and the time can be reserved in advance. The manufacturer has a special person to receive it.。

Steel pipe heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

6、One-combustion energy saving workshop pictures

The finished products of the Steel pipe heating furnace factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

One-combustion energy saving

The finished products of the Steel pipe heating furnace factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

Steel pipe heating furnaceIt is a forging heating device using gas as fuel.，Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.，the product looks beautiful.。
