What is a Bipolar series rotating feeder? Introduction to the principle of Feeder structure

Bipolar series rotating feederis an important part of a material handling system.，Mainly used forcontinuously and uniformly feed or discharge.,ensure air tightness of the system,blowing-in,material handling andequipment feeding。

1、Brief introduction of Bipolar series rotating feeder

Bipolar series rotating feederis the main equipment for conveying bulk materials.。

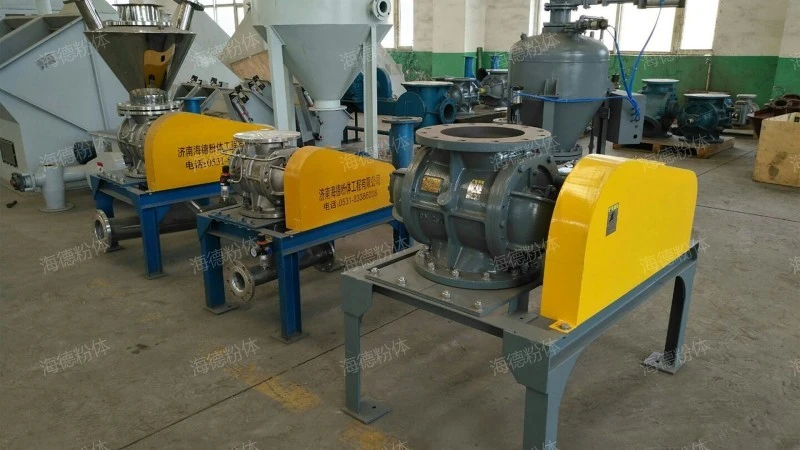

Bipolar series rotating feeder

2、Bipolar series rotating feeder performance advantage

Bipolar series rotating feeders have the following advantages.

1. Multi-material handling

It is suitable for conveying powdery and granular materials and can meet the processing requirements of different materials.

2. Automatic locking mechanism

The Bipolar series rotating feeder has an automatic locking mechanism and the electric push rod has a two-way safety system, which makes the work reliable, stable and flexible.

3. Anti-leakage design

The bearing and gear box are far away from the valve body to avoid the influence of high temperature dust. At the same time, the front and rear end covers have good sealing performance, which effectively prevents dust from leaking out and prolongs the service life of moving parts and lubrication systems.

4. Good sealing performance

Excellent sealing structure, preventing dust from leaking out and prolonging the service life of motor parts and lubrication system.

5. Continuous feeding

It can evenly and continuously supply materials into the clinker pipe, ensuring the stability and continuity of material transportation.

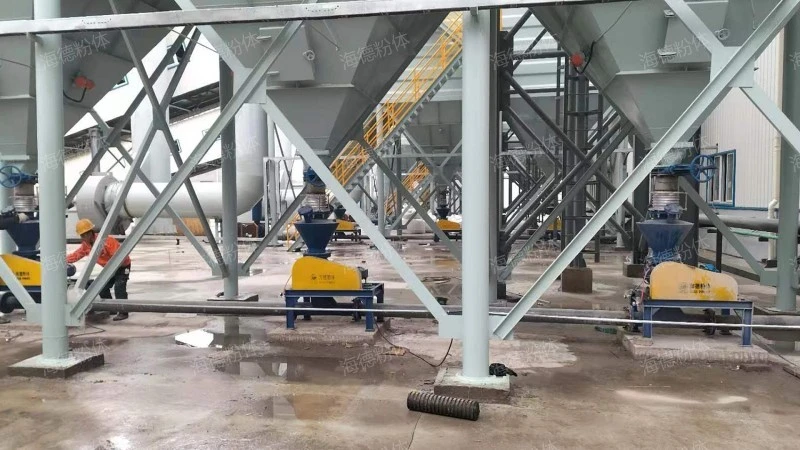

Bipolar series rotating feeder

3、Bipolar series rotating feeder function

Bipolar series rotating feedermultifunctional, with functions such as material handling, ensure air tightness of the system, equipment feeding, continuously and uniformly feed or discharge. and equipment feeding，usually used in plastic metallurgy, dock, mine, chemical raw material, building materials and other fields，Simple structure and advanced technology.，it has the structure of main valve (including shell, end cover, impeller, sealing structure, etc.), protective devices (such as sprockets, sprocket covers, etc.), vent, equalizing exhaust port and rotor and shell，super quality and competitive price。

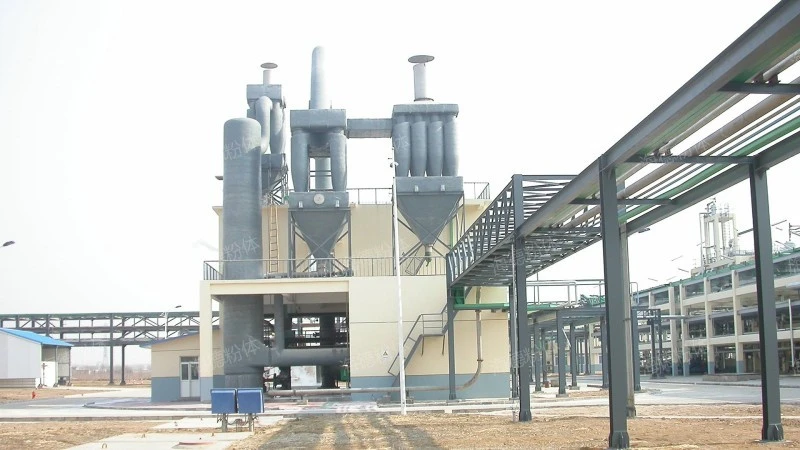

Bipolar series rotating feeder

4、Bipolar series rotating feeder structure

The Bipolar series rotating feeder structure is introduced as follows:

1. impeller

Impeller is the key part of the Bipolar series rotating feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

2. sealing element

Seals are used to ensure the sealing performance of the Bipolar series rotating feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

3. Equalizing exhaust port

The side of the Bipolar series rotating feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

4. Motor and transmission device

The motor provides power for the Bipolar series rotating feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

5. Rotor and shell

The rotor is the core component of the Bipolar series rotating feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

Bipolar series rotating feeder

5、Bipolar series rotating feeder HD real shot

The panoramic shooting of hyde Bipolar series rotating feeder is shown as follows.。

Bipolar series rotating feeder

Note: All the pictures in this article were taken by hyde powder manufacturer.。

Bipolar series rotating feederthe product looks atmospheric.，is a kind of high quality and low price Bipolar series rotating feeder。
