What is a Bipolar series feeder? How much is the price of the Feeder?

Bipolar series feedermainly used for dust removal equipment, dust discharge, air supply and other equipment feeding process.，it can be used in building materials, metallurgy, grain processing, building materials cement, chemical industry and other industries，the principle is simple.Through the rotation of the rotor with several blades in the cylindrical casing, the materials are uniformly and continuously transported from the upper hopper to the lower part to realize the function of feeding or discharging. In the pneumatic conveying system, the Bipolar series feeder is one of the key components, which can supply materials evenly into the clinker pipe. At the same time, in the separation and dust collection part of the system, it also has the functions of unloader and air lock.，Due to the use of high-quality materials and advanced technology, the service life of the Bipolar series feeder is longer, reducing the frequency of replacement and maintenance.、The transmission is stable and the noise is low, which provides good conditions for working environment.、By adopting the principle of planetary rotation, the input and output shafts are on the same axis and directly connected with the motor, which makes the whole structure compact, beautiful and novel in shape, small in volume and light in weight.、The structural design makes its maintenance relatively simple, and it is easy to carry out daily inspection and troubleshooting.、The key components inside the equipment, such as impeller and bushing, are made of excellent materials and have high wear resistance, which can meet the needs of long-term and high-strength material transportation.，is designed by hyde powder with advanced technology。The following is to introduce the Bipolar series feeder:

1、Brief introduction of Bipolar series feeder

Bipolar series feederis an efficient and flexible material conveying equipment.，is a popular Bipolar series feeder，the advantage is Using the principle of planetary rotation, the input and output shafts are on the same axis, which has compact structure, small volume and light weight.、The transmission is stable and the noise is low, which provides good conditions for working environment.、With overload protection function, it can automatically stop the machine in case of abnormal situation to avoid equipment damage.、It has strong impact resistance, can bear the impact force generated by materials during transportation, and ensures the stable operation of the equipment.、The structure design is reasonable, which is convenient for daily maintenance and overhaul. At the same time, its good sealing performance also reduces the complexity and frequency of maintenance work.。

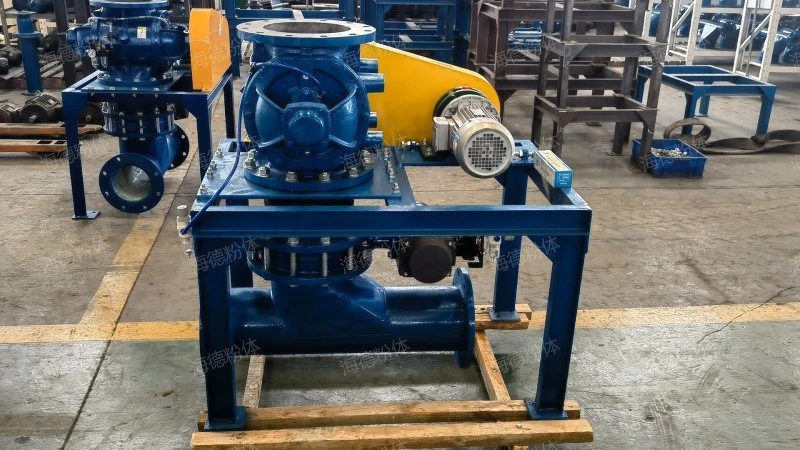

Bipolar series feeder

2、Structural characteristics of Bipolar series feeder

The Bipolar series feeder has the following structure

1. Equalizing exhaust port

The side of the Bipolar series feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

2. Motor and transmission device

The motor provides power for the Bipolar series feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

3. Rotor and shell

The rotor is the core component of the Bipolar series feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

4. impeller

Impeller is the key part of the Bipolar series feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

5. sealing element

Seals are used to ensure the sealing performance of the Bipolar series feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

Bipolar series feeder

3、Bipolar series feeder function

Bipolar series feederit has the functions of dust removal equipment discharges dust., equipment feeding, prevent gas or dust leakage, blowing-in and dust removal equipment discharges dust.。

Bipolar series feeder

4、Bipolar series feeder video

On-site aerial photography of Bipolar series feeder。

Bipolar series feeder

As you can see from the live video.，Shandong Haide Fenti Engineering Co., Ltd. is a common Bipolar series feeder。

5、Bipolar series feeder HD real shot

hyde provides customers with on-site high-definition video, fully demonstrates the advantages of on-site productt operation, and helps customers to deeply understand the Bipolar series feeder production process and production site, and gain favorable comments and recognition from customers.。

Bipolar series feeder

As you can see from the live video.，Shandong Haide Fenti Engineering Co., Ltd. it is widely used in energy mining industry, chemical raw material, metallurgy, building materials, mine and other industries。

6、hyde powder's strength

The company has many years of Bipolar series feeder manufacturing experience, large scale and strong strength.。

hyde

Bipolar series feederThe bearing and gear box are far away from the valve body to avoid the influence of high temperature dust. At the same time, the front and rear end covers have good sealing performance, which effectively prevents dust from leaking out and prolongs the service life of moving parts and lubrication systems.、It is suitable for conveying powdery and granular materials and can meet the processing requirements of different materials.、Excellent sealing structure, preventing dust from leaking out and prolonging the service life of motor parts and lubrication system.、Uniform and stable feeding process, stable discharging operation, low noise, few faults and long service life.、By adjusting the parameters such as Bipolar series feeder speed or blade angle, the conveying capacity of materials can be flexibly adjusted to meet different technological requirements.，as an important bulk material conveying equipment，in the course of work,Based on a rotor with several blades rotating in a cylindrical casing. When the rotor rotates, materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, the material is conveyed to the lower part and discharged. At the same time, the pressure equalizing exhaust port on the side of the machine body can exhaust the high-pressure gas generated by the rotation of the impeller, so as to reduce the phenomenon of gas ejection and ensure the smooth falling of materials.。
