Introduction to Bright heat treatment furnace and heating furnace structure principle

Bright heat treatment furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，it has the functions of Forging heating, anneal, heat treatment, normalizing and Casting heating，can be customized according to user's needs.。The following is to introduce the Bright heat treatment furnace:

1、Brief introduction of Bright heat treatment furnace

Bright heat treatment furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，Cheap and high quality。

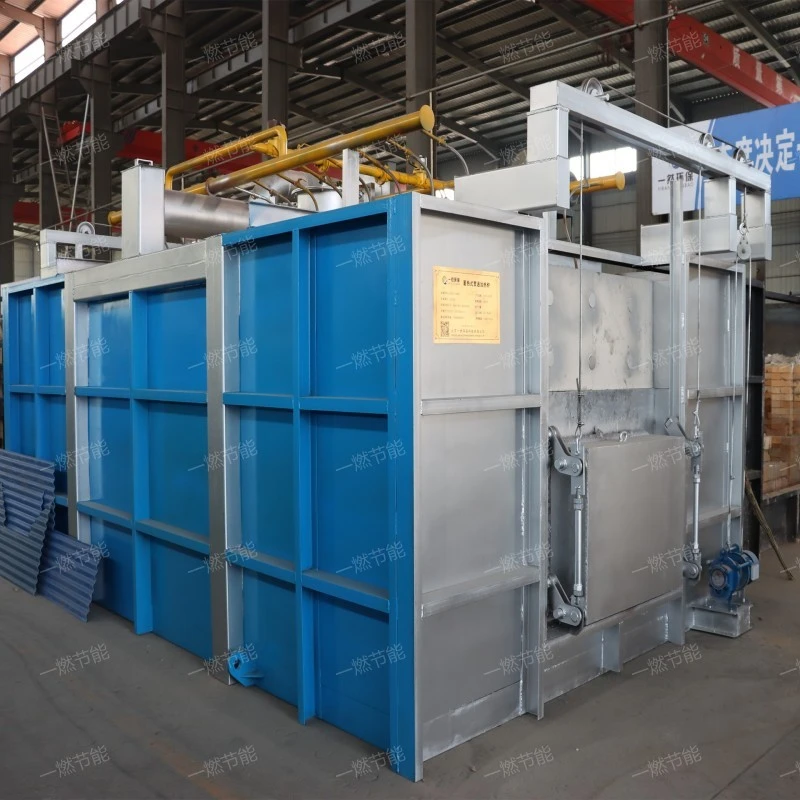

Bright heat treatment furnace

2、Structural characteristics of Bright heat treatment furnace

The Bright heat treatment furnace structure is introduced as follows:

1. furnace chamber

A space for holding metallic materials for heating.

2. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

3. Radiation chamber

The heat load of the main place for Bright heat treatment furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

4. furnace chamber

A space for holding metallic materials for heating.

5. Radiation chamber

The heat load of the main place for Bright heat treatment furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

Bright heat treatment furnace

3、Working principle of Bright heat treatment furnace

Bright heat treatment furnaceHeat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，the product looks beautiful.，the advantage is Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.。

Bright heat treatment furnace

4、Bright heat treatment furnace work site real shot

Bright heat treatment furnace are widely used. The following is a multi-directional display diagram of Bright heat treatment furnace, and the details are full of quality and intelligence.。

Bright heat treatment furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

5、Bright heat treatment furnace video detail

On-site aerial photography of Bright heat treatment furnace。

Bright heat treatment furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd at the start of the operation,The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.。

Bright heat treatment furnaceit has the structure of Radiation chamber, ventilation system, ventilation system, combustor and convection chamber，energy-efficient,energy saving and environmental protection,Stable and reliable,energy-efficient,Easy to maintain，Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.。
