What is a High temperature well type heating furnace? heating furnace specifications, models, and parameters

High temperature well type heating furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，the product looks beautiful.，it can be used in surface treatment, petroleum, shipping, machinery, light industry and other industries，the principle is simple.The high-temperature flame and flue gas generated by burning gas (such as natural gas and liquefied petroleum gas) in the furnace are used as heat sources to heat metal materials.，has been favored by more and more customers.。

1、Brief introduction of High temperature well type heating furnace

High temperature well type heating furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，is a High temperature well type heating furnace newly developed by One-combustion energy saving。

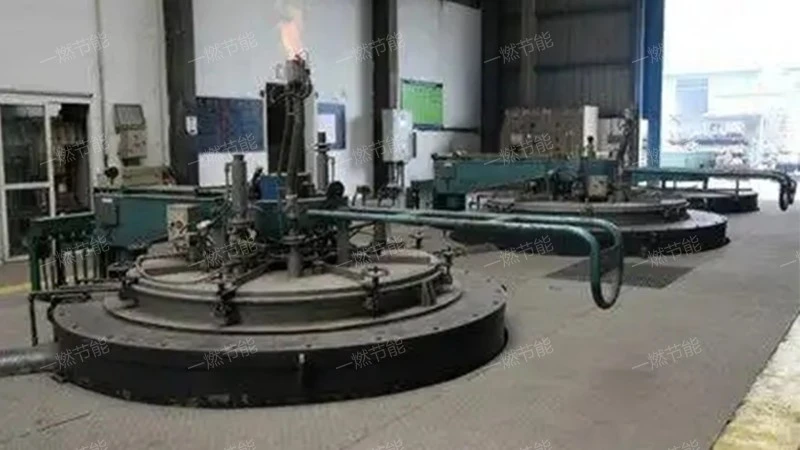

High temperature well type heating furnace

2、High temperature well type heating furnace characteristics

The High temperature well type heating furnace features are as follows:

1. Efficient heating

The High temperature well type heating furnace can heat the metal material to the required temperature in a short time and improve the production efficiency.

2. Stable and reliable

The High temperature well type heating furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

3. energy saving and environmental protection

Natural gas is a kind of clean energy, which produces less waste gas and waste smoke after combustion and has little environmental pollution. At the same time, through wall regenerative combustion technology, flue gas waste heat recovery system and other technical means, the High temperature well type heating furnace further improves energy utilization efficiency and reduces energy consumption and emissions.

4. Easy to maintain

The structural design of the High temperature well type heating furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

5. Easy to control

The combustion system and ventilation system of the High temperature well type heating furnace can be adjusted as required to accurately control the temperature and atmosphere in the furnace and meet the heating requirements of different metal materials.

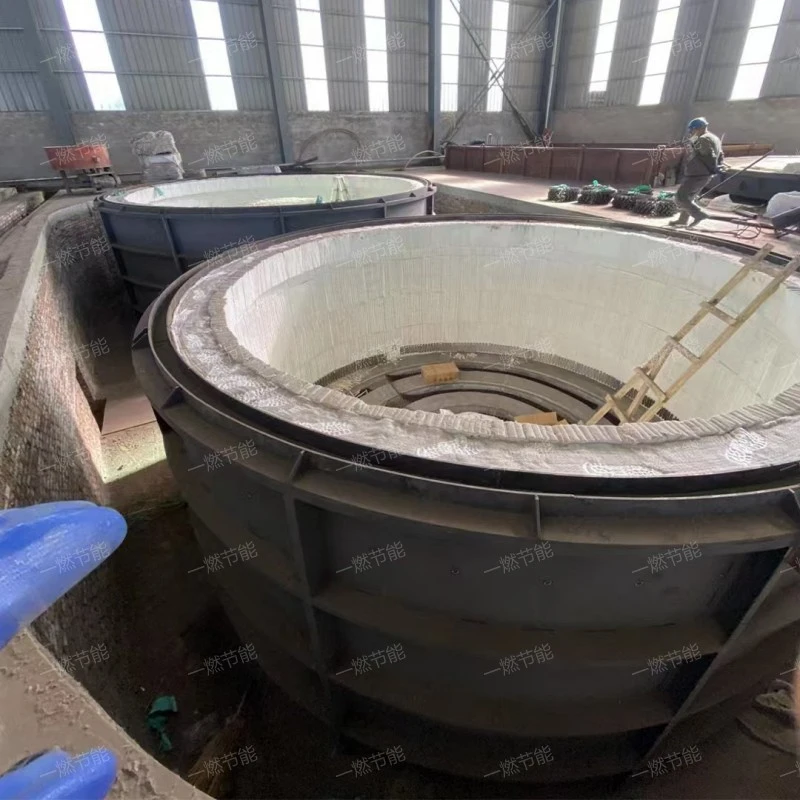

High temperature well type heating furnace

3、High temperature well type heating furnace HD picture real shot

High-definition map of High temperature well type heating furnace is displayed, and the high-definition map of factory area is taken by One-combustion energy saving for reference of our customers.。

High temperature well type heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

4、High temperature well type heating furnace explanation video

Speak directly with facts on the spot。

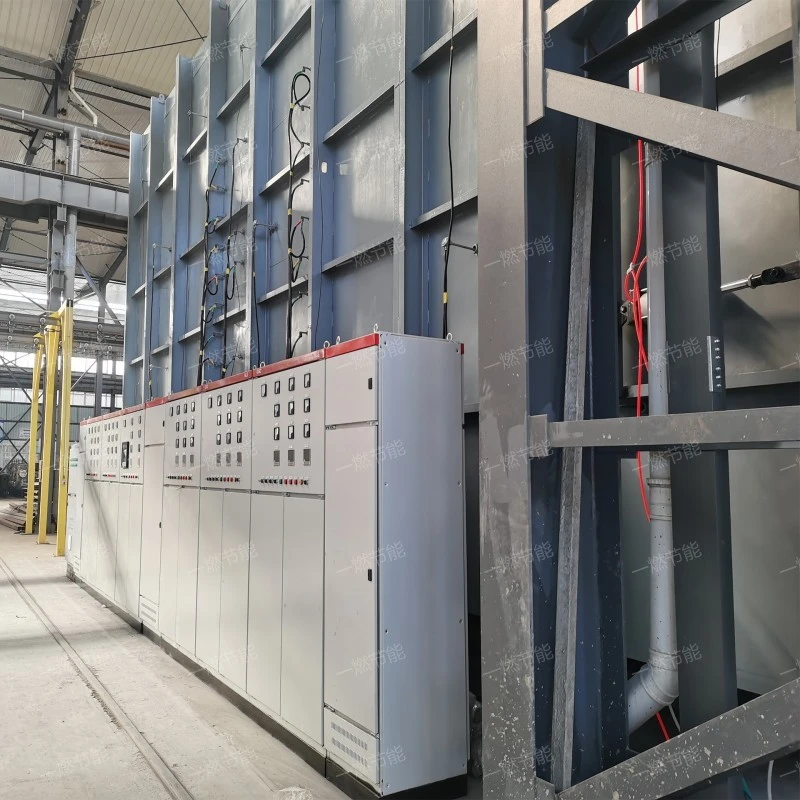

High temperature well type heating furnace

As you can see from the live video.，One-combustion energy saving Widely used inEnergy conservation and environmental protection,Metal heat treatment,Metal forging heating,Improve production efficiency,Metal melting and casting and so on。

5、High temperature well type heating furnace structure

The High temperature well type heating furnace structure is introduced as follows:

1. furnace chamber

A space for holding metallic materials for heating.

2. Radiation chamber

The heat load of the main place for High temperature well type heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

3. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

4. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

5. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

High temperature well type heating furnace

6、Functional advantages of High temperature well type heating furnace

High temperature well type heating furnaces have the following advantages.

1. Multiple fuel options

Although the High temperature well type heating furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

2. Rapid temperature rise

The High temperature well type heating furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

3. Reduce operating costs

The efficient combustion and waste heat recovery system of the High temperature well type heating furnace can significantly reduce energy consumption, thus reducing operating costs.

4. easy to operate

The operation interface of the High temperature well type heating furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

5. Extend the service life of equipment

The High temperature well type heating furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

High temperature well type heating furnace

High temperature well type heating furnacethe product looks atmospheric.，The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.。
