What is a Pit type quenching heating furnace? forging furnace specifications, models, and parameters

Pit type quenching heating furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，Commonly used inMetal melting and casting,Metal heat treatment,Metal tempering,Improve production efficiency,Metal forging heating and so on，structure mainly includes: combustor, recovery of waste heat, ventilation system, Radiation chamber, ventilation system and so on，This Pit type quenching heating furnaceThe overall structural design is simple and novel.，the product looks atmospheric.，is a kind of Pit type quenching heating furnace manufactured by One-combustion energy saving。

1、Brief introduction of Pit type quenching heating furnace

Pit type quenching heating furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，is a common Pit type quenching heating furnace。

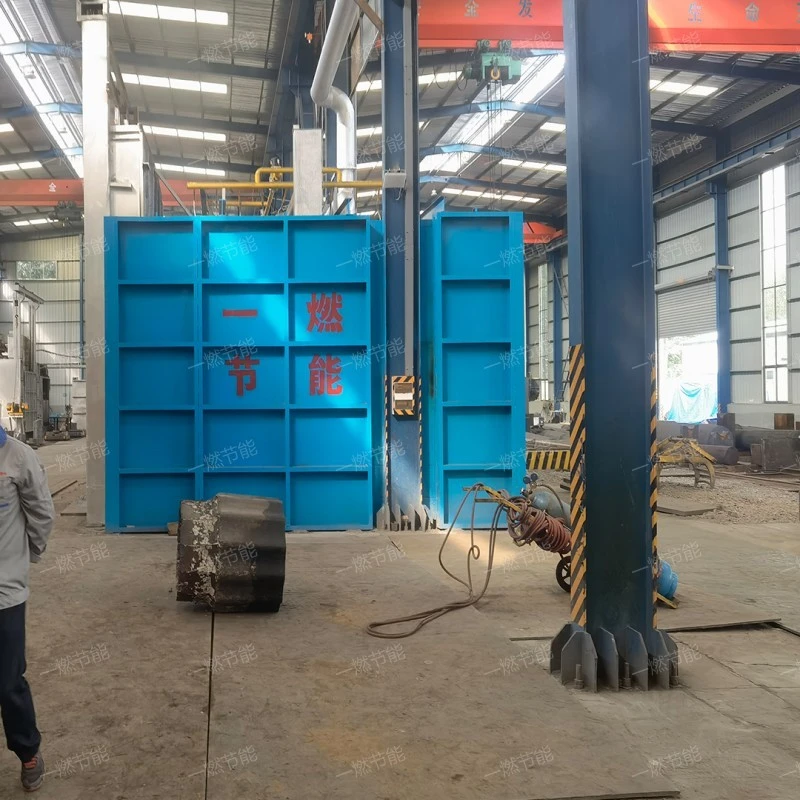

Pit type quenching heating furnace

2、Pit type quenching heating furnace introduction video

On-site aerial photography of Pit type quenching heating furnace。

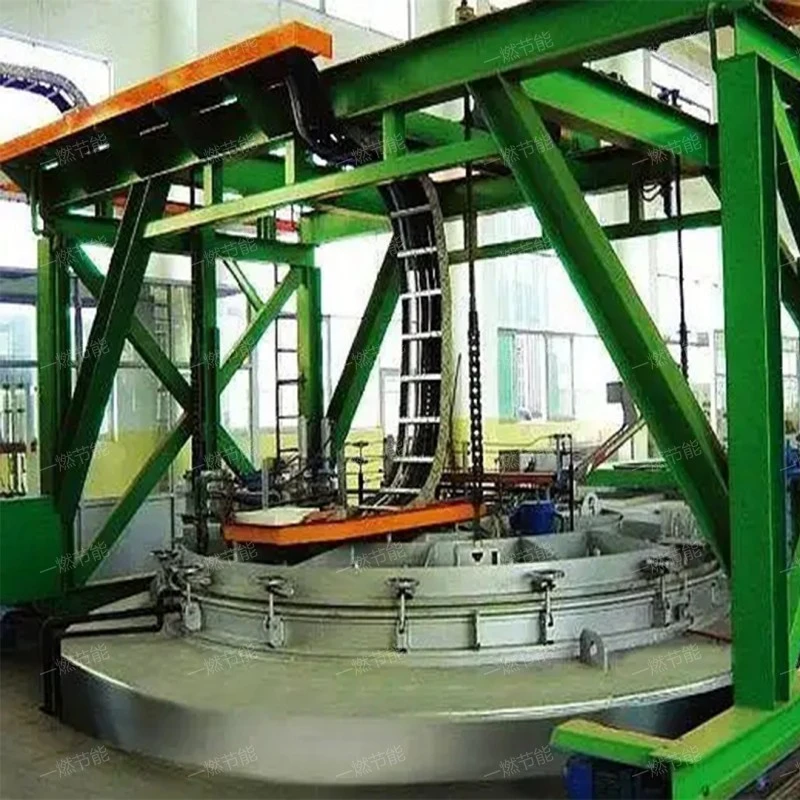

Pit type quenching heating furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd is a Pit type quenching heating furnace。

3、Pit type quenching heating furnace characteristics

The Pit type quenching heating furnace features are as follows:

1. Efficient heating

The Pit type quenching heating furnace can heat the metal material to the required temperature in a short time and improve the production efficiency.

2. Strong adaptability

The Pit type quenching heating furnace is suitable for forging and heating of various metal materials and has a wide range of applications.

3. Efficient heating

The Pit type quenching heating furnace can heat the metal to the required forging temperature in a very short time, reducing the loss caused by the oxidation of the metal.

4. Easy to control

By adjusting the burner and ventilation system, the temperature and atmosphere in the furnace can be accurately controlled to meet the heating requirements of different metal materials.

5. Easy to maintain

The structural design of the Pit type quenching heating furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

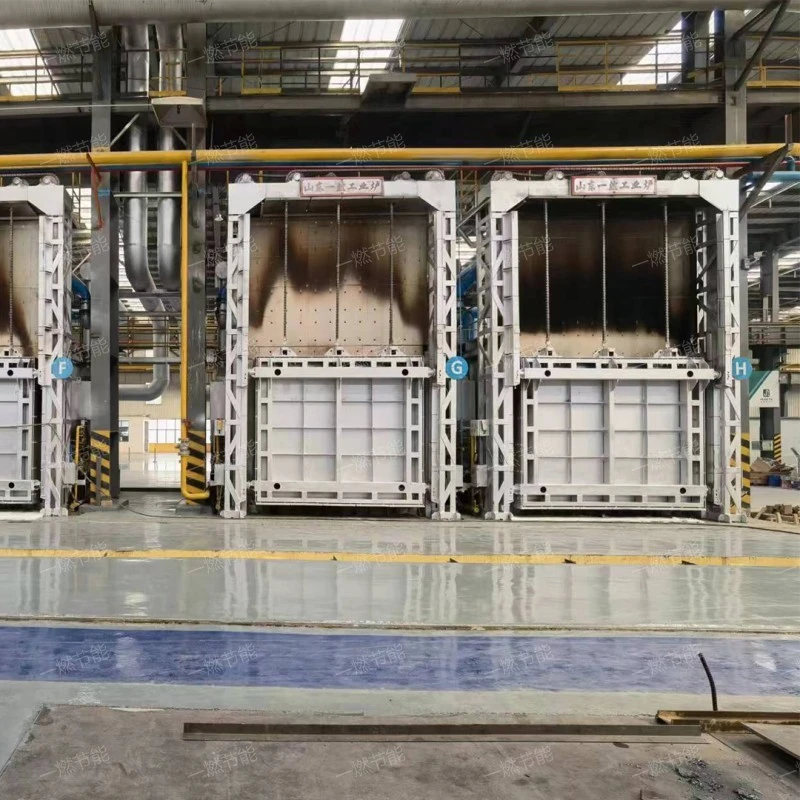

Pit type quenching heating furnace

4、Structural characteristics of Pit type quenching heating furnace

The Pit type quenching heating furnace structure is introduced as follows:

1. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

2. furnace chamber

A space for holding metallic materials for heating.

3. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

4. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

Pit type quenching heating furnace

5、Pit type quenching heating furnace use

The purpose of Pit type quenching heating furnace is introduced as follows:

1. Energy conservation and environmental protection

The Pit type quenching heating furnace uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

2. Improve production efficiency

The Pit type quenching heating furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

3. Metal tempering

By properly heating and cooling the metal material, the Pit type quenching heating furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

4. Metal forging heating

The Pit type quenching heating furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

5. Metal melting and casting

Although it is mainly used for forging heating, some types of Pit type quenching heating furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

Pit type quenching heating furnace

6、How much is the Pit type quenching heating furnace?

The Pit type quenching heating furnace price is introduced as follows:

1. Different regions

If the location of the manufacturer is superior, its transportation will be more convenient. One-combustion energy saving address:Shandong(Province) has convenient transportation, which provides a good convenience for the transportation of Pit type quenching heating furnace.

2. market factors

Market supply and demand is the inevitable law of market development, with more market supply, less demand and lower product prices; The market supply is small, and people's demand is large. "Things are scarce and expensive", the product price will increase accordingly, and the price of One-combustion energy saving Pit type quenching heating furnace will also conform to this market law.

3. product function

The more functions a product has, the higher its manufacturing cost, so that the product can be used by customers as much as possible, which can create more useful value for customers, so the price will be higher.

4. raw material

The higher the cost of materials, the higher the price will be. In the process of purchasing products, users need to make a detailed understanding of the materials selected for products.

5. Self quality

As we all know, the service life of products with excellent quality will be longer, and at the same time, the benefits created by such products for customers will be higher, which will lead to an increase in the cost of products and a high sales price of products.

Pit type quenching heating furnace

Pit type quenching heating furnaceat work,Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，The structural design is more advanced and reasonable.，the main structure includes furnace chamber, ventilation system, Radiation chamber, recovery of waste heat and combustor。
