Introduction to Large trolley electric heating furnace, Trolley electric heating furnace specifications, model parameters

Large trolley electric heating furnaceis an industrial furnace that uses electric current to generate heat energy through resistive materials, thus heating workpieces or materials.，widely used in building materials, electron, Special material, chemical industry, Special material and other fields，It has a wide range of uses, including Metal heat treatment heating, quench, anneal, Heating before metal forging and Melting of low melting point metal，in the course of work,It is the thermal effect of current, that is, when current passes through a conductor with a certain resistance, electric energy will be converted into heat energy, which will make the resistor heat up and transfer heat to the materials in the furnace.，has been favored by more and more customers.。The following is to introduce the Large trolley electric heating furnace:

1、Brief introduction of Large trolley electric heating furnace

Large trolley electric heating furnaceis an industrial equipment that uses electric current to generate heat through a resistor to heat materials.，the product looks beautiful.。

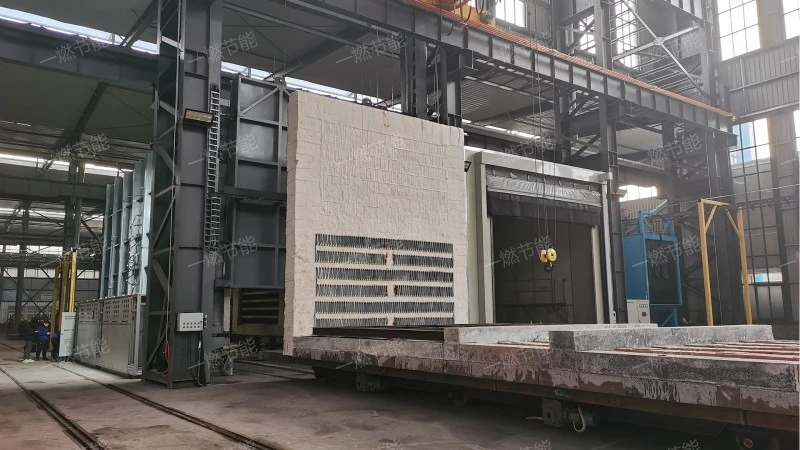

Large trolley electric heating furnace

2、Large trolley electric heating furnace function

Large trolley electric heating furnacemultifunctional, with functions such as anneal, quench, heat treatment, quench and normalizing，is a common Large trolley electric heating furnace，customizable。

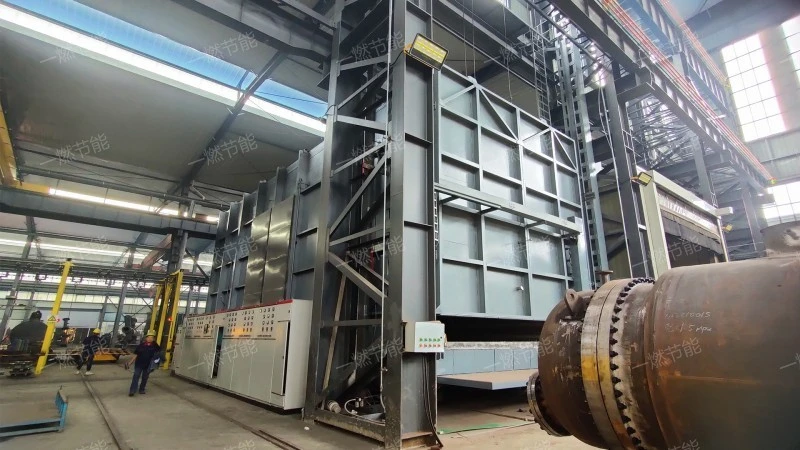

Large trolley electric heating furnace

3、Large trolley electric heating furnace picture

Large trolley electric heating furnace HD real shot, showing the product style.。

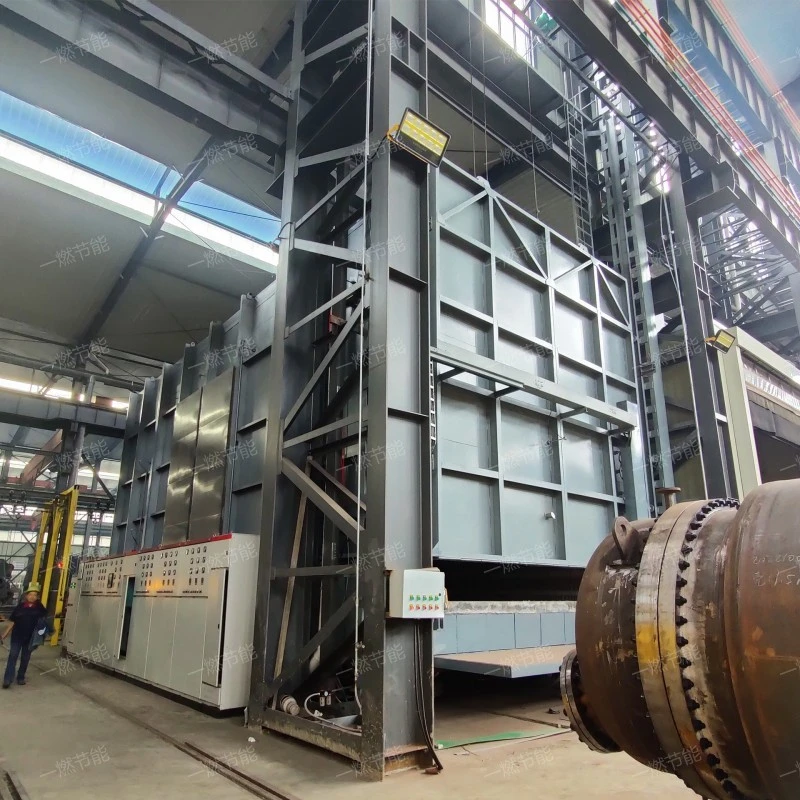

Large trolley electric heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

4、Large trolley electric heating furnace application

Large trolley electric heating furnaces have the following purposes.

1. Ceramic and glass industries

Used for baking and annealing of ceramics and glass.

2. New material development

Used for synthesis and heat treatment of special materials and new materials.

3. powder metallurgy

Used for sintering and heat treatment of powder.

4. Metal melting and casting

Used for melting low melting point metals and alloys.

5. Metal heat treatment

Such as quenching, normalizing, annealing, tempering, etc.

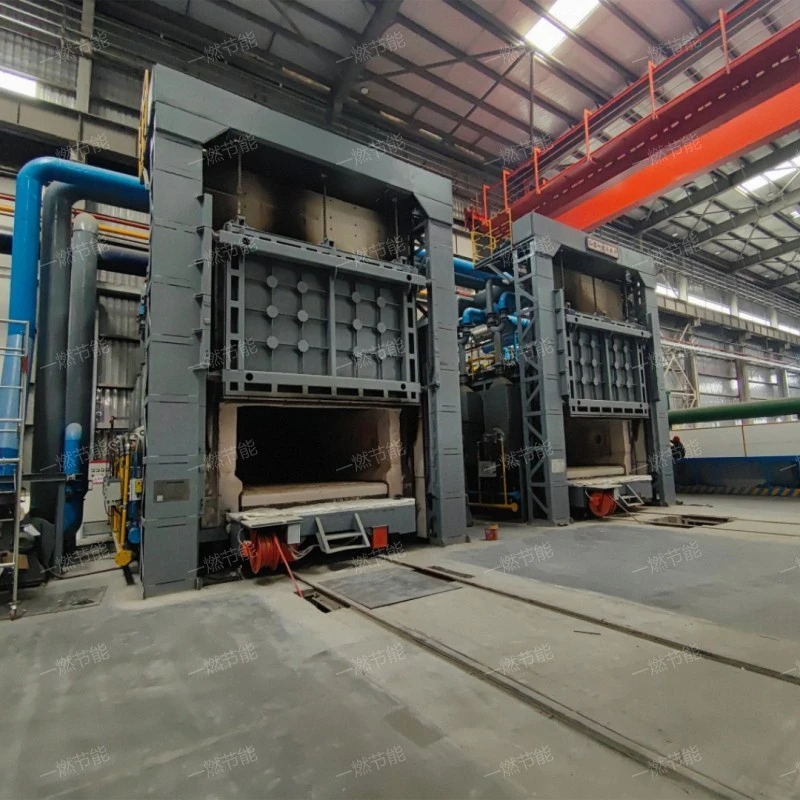

Large trolley electric heating furnace

5、Structural characteristics of Large trolley electric heating furnace

The Large trolley electric heating furnace has the following structure

1. thermal insulation (material)

Thermal insulation materials are used to reduce heat loss and keep the temperature in the furnace stable. Commonly used thermal insulation materials include ceramic fibers, refractory fibers, etc. These materials have the characteristics of [commodity characteristics].

2. control system

The control system is the command center of the Large trolley electric heating furnace, which is usually composed of temperature controller, power regulator and thermocouple. These components work together to realize real-time monitoring and automatic adjustment of the temperature in the furnace.

3. fire door

The furnace Large trolley electric heating furnace is the passage for operators to enter and leave the furnace, and it also plays a certain sealing role. It can effectively prevent the heat in the furnace from leaking out and the cold air from outside from entering, and ensure the stability of the temperature in the furnace.

4. Temperature control system

The temperature control system is used to accurately control the temperature in the furnace to meet different process requirements.

5. heating element

Electric heating elements (such as Fe-Cr-Al electric heater, Ni-Cr electric heater, silicon carbide rod, etc.) are the core components for generating heat.

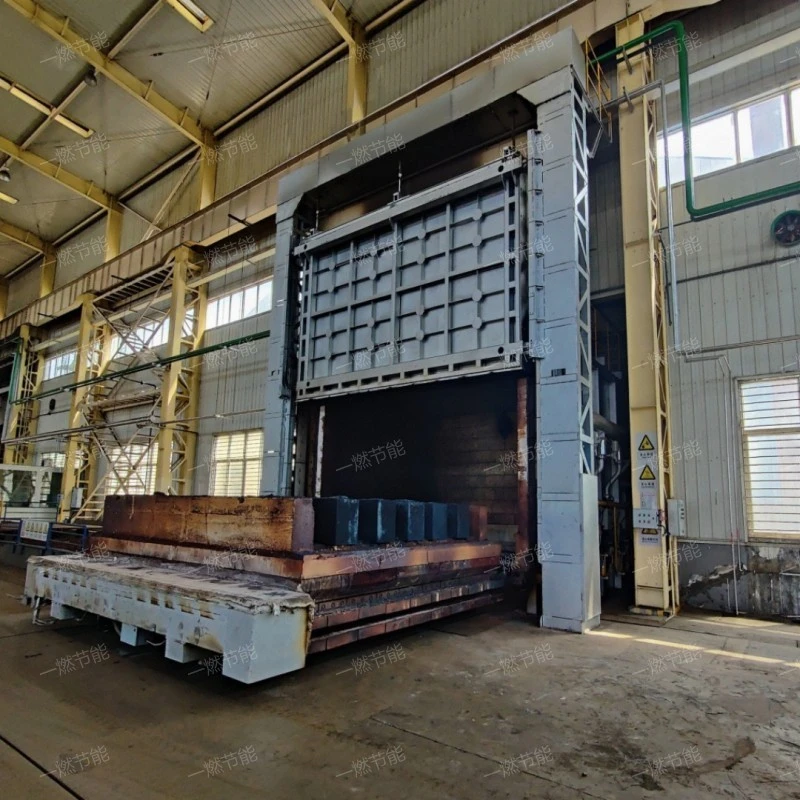

Large trolley electric heating furnace

6、Functional advantages of Large trolley electric heating furnace

Large trolley electric heating furnaces have the following advantages.

1. rapid heating

The Large trolley electric heating furnace can quickly raise the temperature to the set temperature, shorten the heating time and improve the production efficiency. In particular, direct heating, current directly through the material, heating faster.

2. Good temperature uniformity

The temperature distribution in the Large trolley electric heating furnace is relatively uniform, which is helpful to reduce the temperature gradient in the heating process of the workpiece and improve the heating quality.

3. Strong customization

The Large trolley electric heating furnace can be customized according to the actual needs of users, such as heating power, furnace size, temperature control accuracy, etc., to meet the requirements of specific processes.

4. Wide application range

Large trolley electric heating furnaces are suitable for heating workpieces of various shapes and sizes, and can meet the heating needs of different industries and processes.

5. Environmental protection and energy saving

No pollutants generated by fuel combustion, meeting the requirements of environmental protection; At the same time, due to high thermal efficiency, energy consumption is relatively low.

Large trolley electric heating furnace

Large trolley electric heating furnaceis an industrial furnace that uses electric current to generate heat through a resistor, and is mainly used for heating, heat treating or melting metals, nonmetals and other materials.，it has the functions of hardening and tempering, anneal, temper, Forging heating and Casting heating，the product looks atmospheric.。
