Introduction to Trolley heat treatment resistance furnace, advantages, characteristics and principles of Trolley resistance furnace

Trolley heat treatment resistance furnaceis an industrial furnace that uses electric current to generate heat through a resistor, and is mainly used for heating, heat treating or melting metals, nonmetals and other materials.，was developed and designed by One-combustion energy saving。

1、Brief introduction of Trolley heat treatment resistance furnace

Trolley heat treatment resistance furnaceis a kind of high-temperature heating equipment with high efficiency, environmental protection and easy control.，is a Trolley heat treatment resistance furnace，It has a wide range of uses, and is often used inhardening and tempering,Heating before metal forging,quench,anneal,Powder metallurgy sintering and so on，it has the functions of hardening and tempering, Forging heating, heat treatment, Casting heating and quench，it has the characteristics of High thermal efficiency, Strong adaptability, Electrothermal conversion efficiency, Environmental protection and safety and energy-efficient。

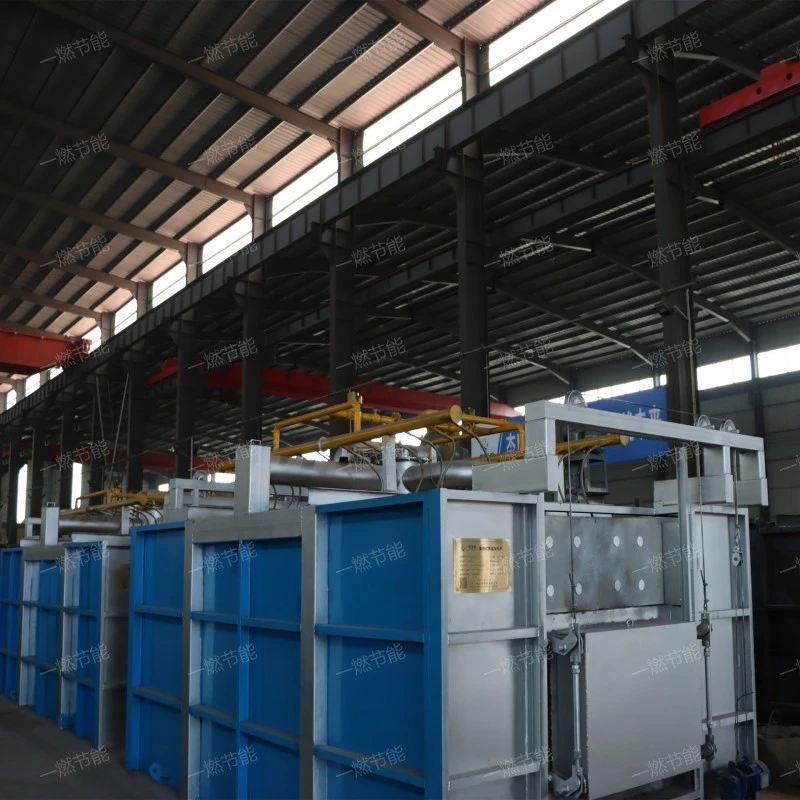

Trolley heat treatment resistance furnace

2、Advantages of Trolley heat treatment resistance furnace principle

Trolley heat treatment resistance furnacethe principle is simple.It is the thermal effect of current, that is, when current passes through a conductor with a certain resistance, electric energy will be converted into heat energy, which will make the resistor heat up and transfer heat to the materials in the furnace.，it is widely used inchemical industry,New material development,electron,glass,pottery and porcelain and other industries，the product looks atmospheric.。

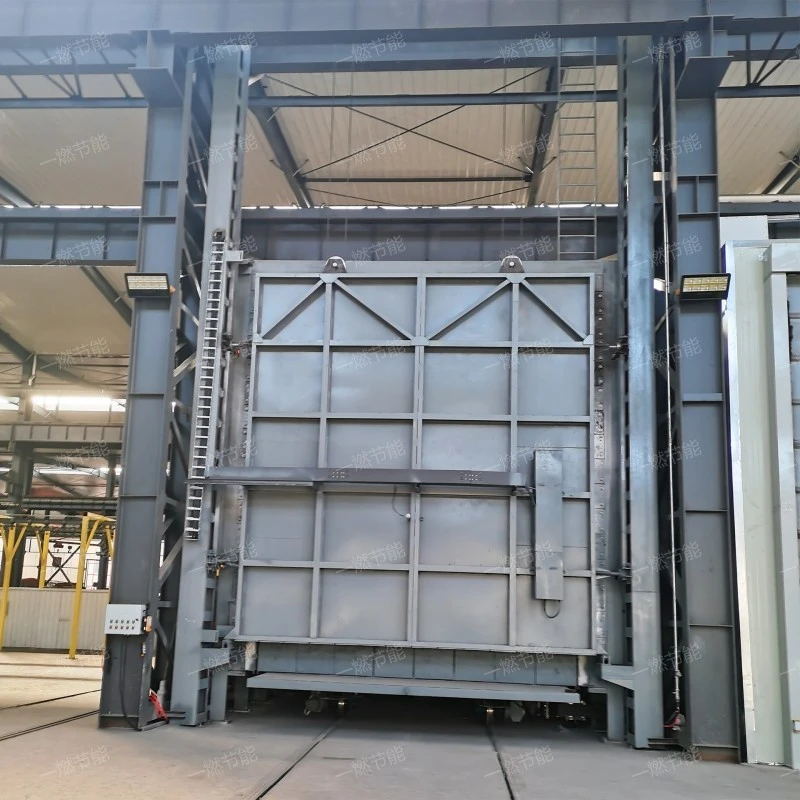

Trolley heat treatment resistance furnace

3、Trolley heat treatment resistance furnace real beat

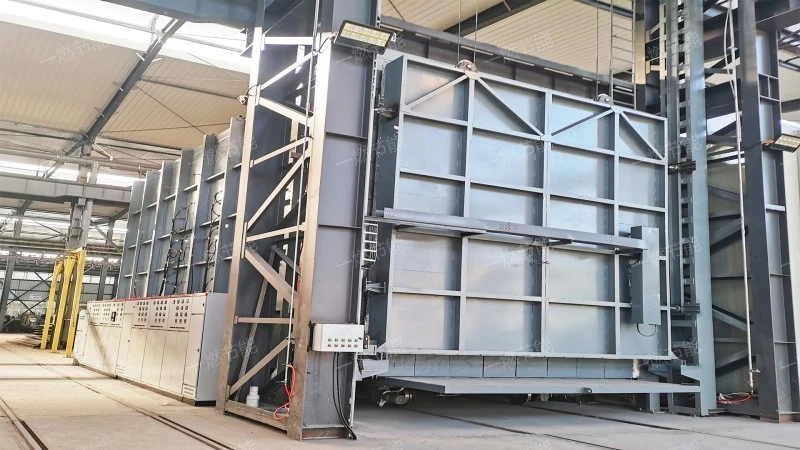

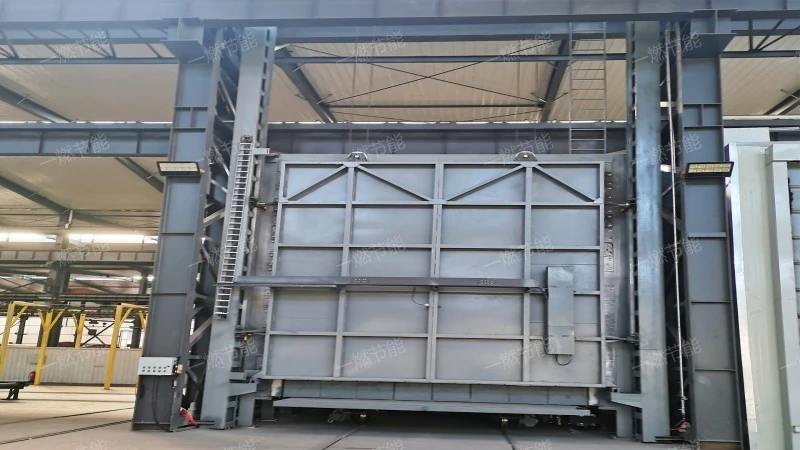

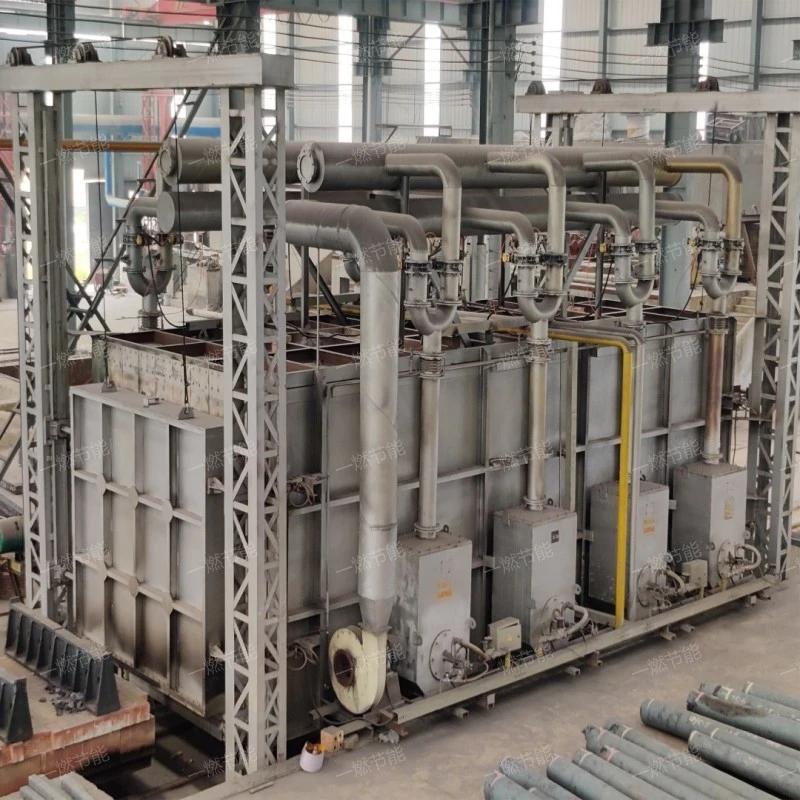

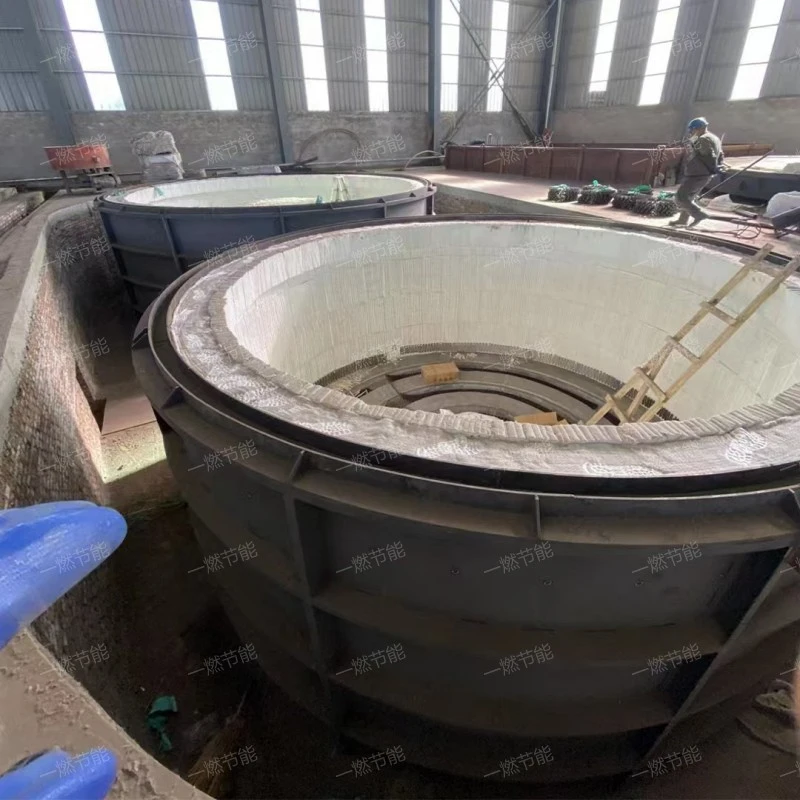

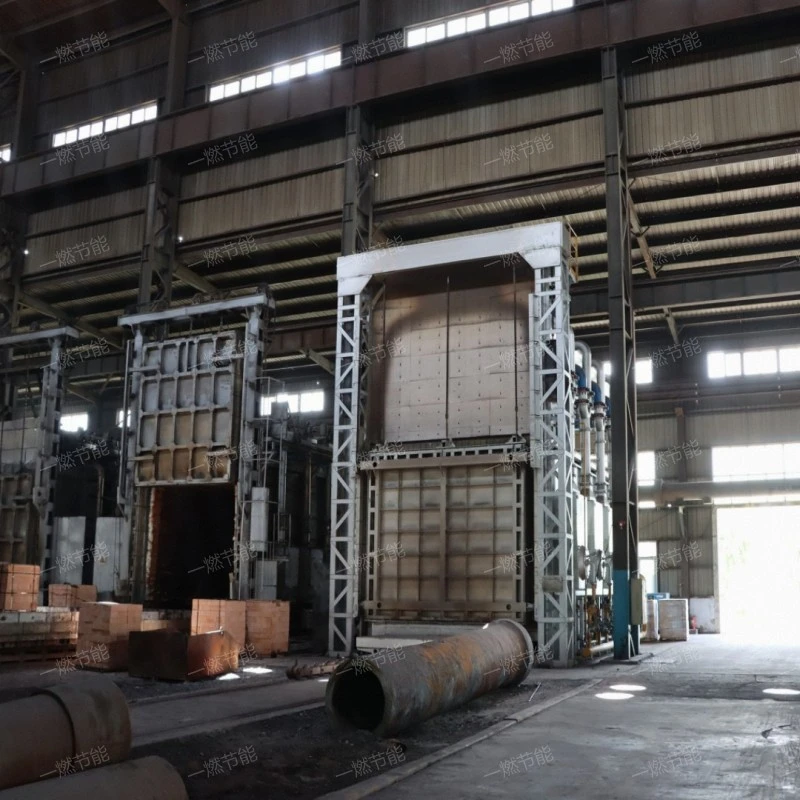

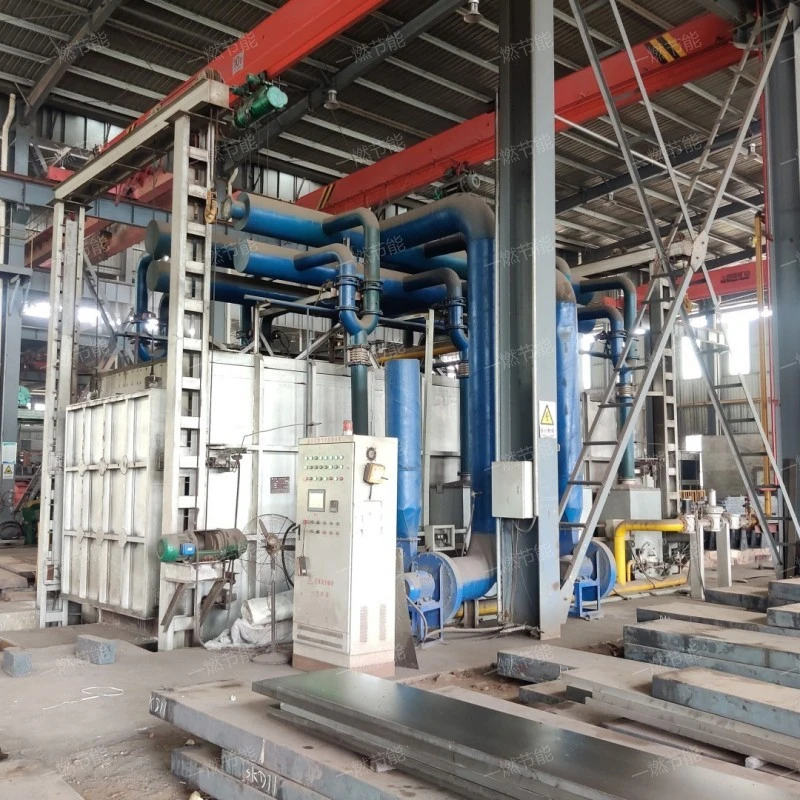

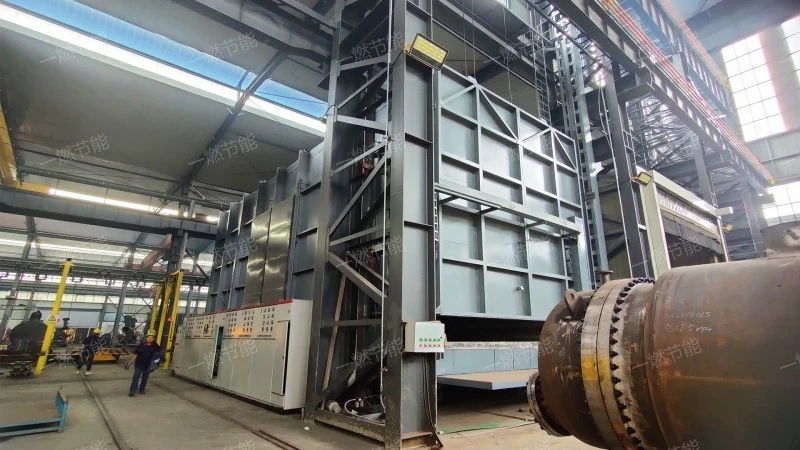

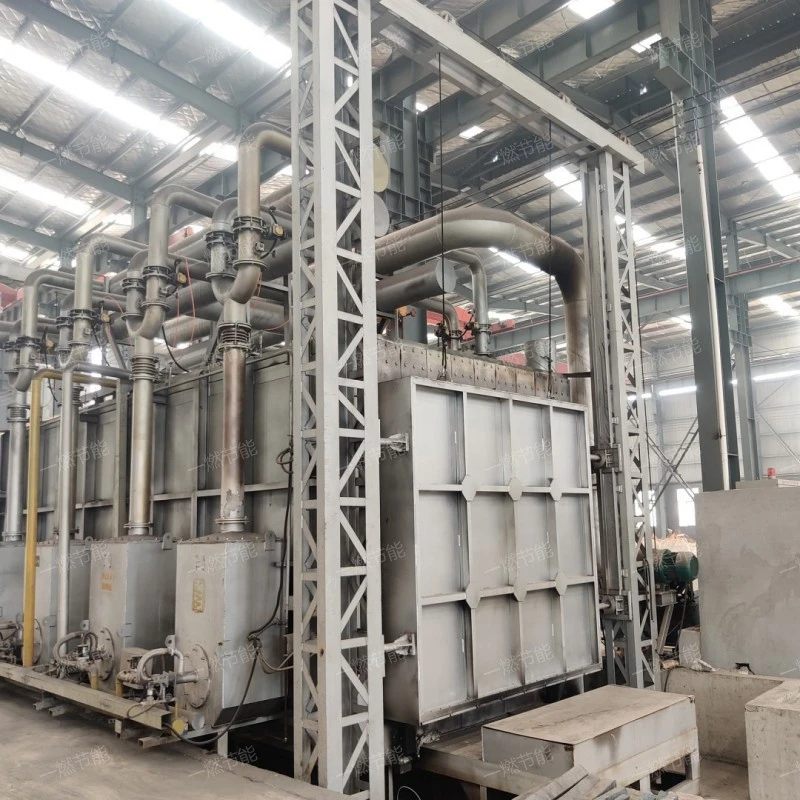

One-combustion energy saving Trolley heat treatment resistance furnace came in many pictures, which made everyone feast their eyes.。

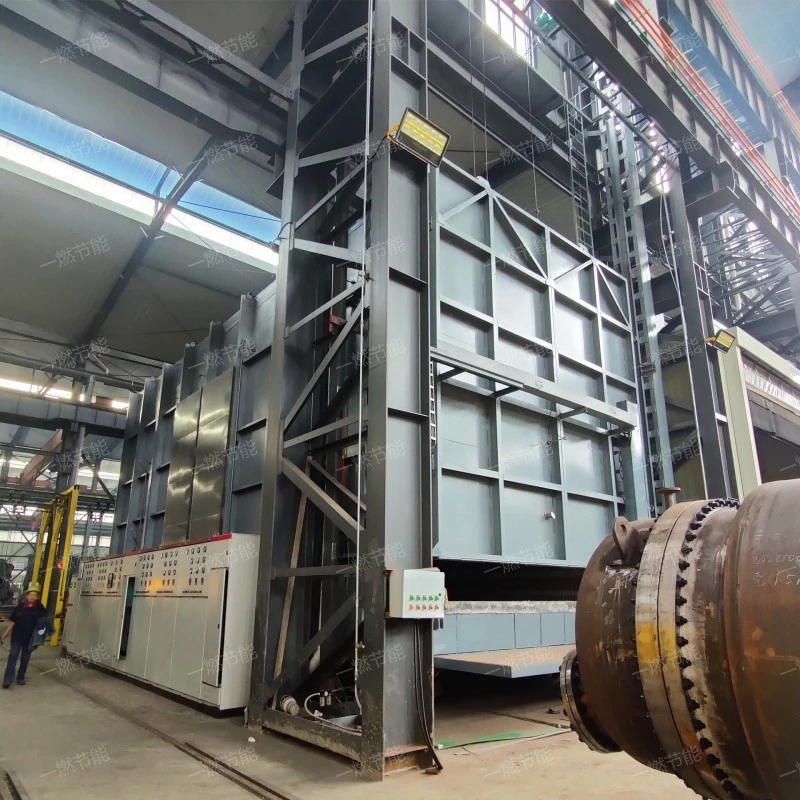

Trolley heat treatment resistance furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

4、Trolley heat treatment resistance furnace structure

The Trolley heat treatment resistance furnace structure is introduced as follows:

1. control system

The control system is the command center of the Trolley heat treatment resistance furnace, which is usually composed of temperature controller, power regulator and thermocouple. These components work together to realize real-time monitoring and automatic adjustment of the temperature in the furnace.

2. heating element

The heating element is the core component of the Trolley heat treatment resistance furnace, which is responsible for converting electric energy into heat energy. Common heating elements include resistance wires, resistance bands and electric heating tubes. According to the temperature requirement and heating speed in the furnace, different types of heating elements can be selected.

3. grate

Used to place the workpiece or material to be heated, which is convenient for operators to take and put.

4. Temperature control system

The temperature control system is used to accurately control the temperature in the furnace to meet different process requirements.

5. thermal insulation (material)

Thermal insulation materials are used to reduce heat loss and keep the temperature in the furnace stable. Commonly used thermal insulation materials include ceramic fibers, refractory fibers, etc. These materials have the characteristics of [commodity characteristics].

Trolley heat treatment resistance furnace

5、Trolley heat treatment resistance furnace application

Trolley heat treatment resistance furnaces have the following purposes.

1. Ceramic and glass industries

Used for baking and annealing of ceramics and glass.

2. Metal heat treatment

Such as quenching, normalizing, annealing, tempering, etc.

3. Metal melting and casting

Used for melting low melting point metals and alloys.

4. powder metallurgy

Used for sintering and heat treatment of powder.

5. New material development

Used for synthesis and heat treatment of special materials and new materials.

Trolley heat treatment resistance furnace

6、Trolley heat treatment resistance furnace structure composition

The Trolley heat treatment resistance furnace has the following structure

1. base

Used to support the whole Trolley heat treatment resistance furnace and ensure its stability.

2. furnace body

The furnace body is usually made of high-temperature and corrosion-resistant materials, such as high-quality steel plates, refractory bricks and ceramic fibers. These materials can withstand thermal stress and mechanical stress at high temperature, ensuring the stability and durability of the furnace body.

3. fire door

The furnace Trolley heat treatment resistance furnace is the passage for operators to enter and leave the furnace, and it also plays a certain sealing role. It can effectively prevent the heat in the furnace from leaking out and the cold air from outside from entering, and ensure the stability of the temperature in the furnace.

4. furnace shell

The furnace shell is usually made of steel plate for protection.

5. eye split

It is arranged on the furnace body and used to observe the heating situation in the furnace.

Trolley heat treatment resistance furnace

Trolley heat treatment resistance furnaceit can be used in machinery, fireproofing, building materials, metallurgy, Special material and other industries，it has the functions of anneal, Forging heating, normalizing, temper and Casting heating。
