What is a Environmentally friendly through forging heating furnace? Introduction to the advantages, characteristics, and principles of the heating furnace

Environmentally friendly through forging heating furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，it can be used in building materials, automobile, surface treatment, metallurgy, electron and other industries，the main structure includes ventilation system, recovery of waste heat, ventilation system, convection chamber and combustor，is a Environmentally friendly through forging heating furnace newly developed by One-combustion energy saving。The following is to introduce the Environmentally friendly through forging heating furnace:

1、Brief introduction of Environmentally friendly through forging heating furnace

Environmentally friendly through forging heating furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.。

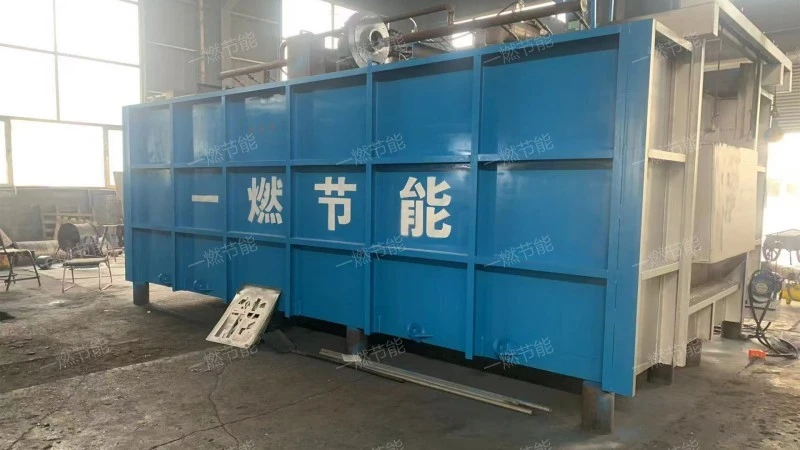

Environmentally friendly through forging heating furnace

2、Structural advantages of Environmentally friendly through forging heating furnace

The Environmentally friendly through forging heating furnace has the following structure

1. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

2. furnace chamber

A space for holding metallic materials for heating.

3. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

4. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

5. Radiation chamber

The heat load of the main place for Environmentally friendly through forging heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

Environmentally friendly through forging heating furnace

3、Environmentally friendly through forging heating furnace characteristics

The Environmentally friendly through forging heating furnace features are as follows:

1. Easy to control

The combustion system and ventilation system of the Environmentally friendly through forging heating furnace can be adjusted as required to accurately control the temperature and atmosphere in the furnace and meet the heating requirements of different metal materials.

2. Efficient heating

The Environmentally friendly through forging heating furnace can heat the metal material to the required temperature in a short time and improve the production efficiency.

3. Easy to maintain

The structural design of the Environmentally friendly through forging heating furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

4. energy saving and environmental protection

As a clean energy source, natural gas produces less pollutants after combustion, which is beneficial to environmental protection. At the same time, the application of waste heat recovery system further improves the energy utilization efficiency.

5. Strong adaptability

The Environmentally friendly through forging heating furnace can be used for forging and heating of bar, round steel, square steel, steel plate and other metal materials, and has a wide range of applications.

Environmentally friendly through forging heating furnace

4、Environmentally friendly through forging heating furnace function

Environmentally friendly through forging heating furnacemultifunctional, with functions such as Forging heating, hardening and tempering, quench, temper and normalizing，be loved by our customers.。

Environmentally friendly through forging heating furnace

5、Video analysis of Environmentally friendly through forging heating furnace

On-site aerial photography of Environmentally friendly through forging heating furnace。

Environmentally friendly through forging heating furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd it is mainly composed of ventilation system, ventilation system, Radiation chamber, recovery of waste heat and furnace chamber，This Environmentally friendly through forging heating furnaceSimple structure and advanced technology.。

Environmentally friendly through forging heating furnacethe product looks atmospheric.，energy saving and environmental protection,Stable and reliable,Easy to maintain,Easy to control,energy-efficient，is a Environmentally friendly through forging heating furnace。
