What is a Continuous isothermal quenching heating furnace? Introduction to the Working Principle of Forging furnace

Continuous isothermal quenching heating furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，the advantage is Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.，is a kind of high quality and low price Continuous isothermal quenching heating furnace。The following is to introduce the Continuous isothermal quenching heating furnace:

1、Brief introduction of Continuous isothermal quenching heating furnace

Continuous isothermal quenching heating furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.。

Continuous isothermal quenching heating furnace

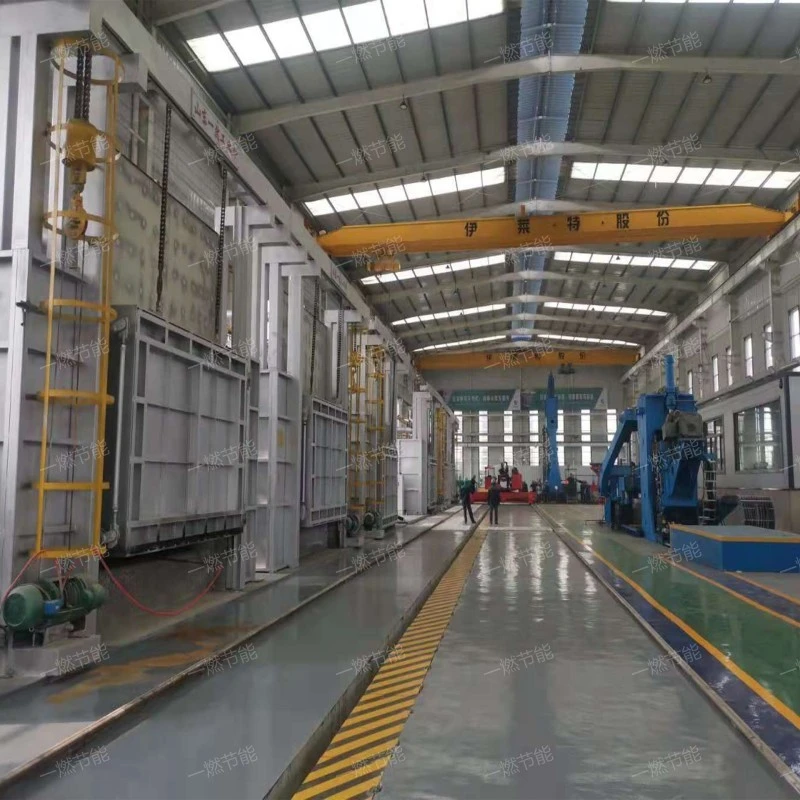

2、Continuous isothermal quenching heating furnace picture

Continuous isothermal quenching heating furnace picture at a glance, showing elegance.。

Continuous isothermal quenching heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

3、Structural characteristics of Continuous isothermal quenching heating furnace

The Continuous isothermal quenching heating furnace structure is introduced as follows:

1. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

2. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

3. furnace chamber

A space for holding metallic materials for heating.

4. Radiation chamber

The heat load of the main place for Continuous isothermal quenching heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

5. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

Continuous isothermal quenching heating furnace

4、Introduction of advantages of Continuous isothermal quenching heating furnace

Continuous isothermal quenching heating furnaces have the following advantages.

1. Intelligent control

The Continuous isothermal quenching heating furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

2. Efficient combustion

The Continuous isothermal quenching heating furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

3. Uniform heating

The Continuous isothermal quenching heating furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

4. Reduce operating costs

The efficient combustion and waste heat recovery system of the Continuous isothermal quenching heating furnace can significantly reduce energy consumption, thus reducing operating costs.

5. Wide application range

The Continuous isothermal quenching heating furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

Continuous isothermal quenching heating furnace

5、Advantages of Continuous isothermal quenching heating furnace principle

Continuous isothermal quenching heating furnaceat work,The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.，the product looks beautiful.，it is an ideal choice for customers to buy Continuous isothermal quenching heating furnace。

Continuous isothermal quenching heating furnace

6、One-combustion energy saving company discount

Continuous isothermal quenching heating furnace is a new type of Forging furnace introduced by One-combustion energy saving manufacturer, which has a wide range of applications, complete structural design and high working efficiency. It is an ideal equipment for heat treatment and other industries. Now consult One-combustion energy savingproduce的Continuous isothermal quenching heating furnace, you can enjoy the discount, and there are many activities for you, such as full reduction and full reduction。

One-combustion energy saving

Continuous isothermal quenching heating furnaceit has the characteristics of Strong adaptability, energy-efficient, Easy to maintain, energy saving and environmental protection and Stable and reliable，Widely used in Improve production efficiency, Metal heat treatment, Metal melting and casting, Metal tempering and Improve production efficiency。
