Introduction to Upward blowing bottom conveying pump and bin pump working principle

Upward blowing bottom conveying pumpis a kind of equipment used for pneumatic conveying.，the product looks atmospheric.，multifunctional, with functions such as environmental protection and dust removal, powder conveying, environmental protection and dust removal, material handling and pneumatic transport，has been favored by more and more customers.。

1、Brief introduction of Upward blowing bottom conveying pump

Upward blowing bottom conveying pumpalso called bin pump, it is a kind of positive pressure pneumatic conveying equipment.，usually used in grain processing, chemical lines, Building materials industry, food service industry, grain processing and other fields。

Upward blowing bottom conveying pump

2、Structural characteristics of Upward blowing bottom conveying pump

The Upward blowing bottom conveying pump has the following structure

1. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

2. pump body

The core part of the Upward blowing bottom conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

3. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

4. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

5. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

Upward blowing bottom conveying pump

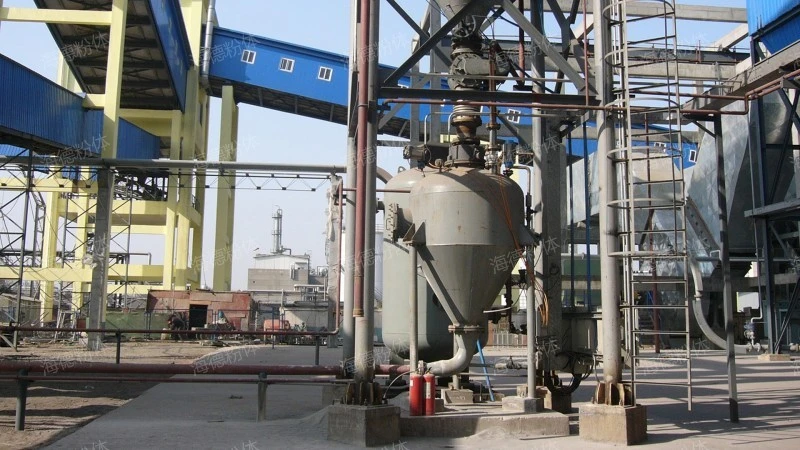

3、On-site real shot of Upward blowing bottom conveying pump

Excellent materials, atmospheric design, fine workmanship, impeccable, trustworthy, all-round high-definition shooting, which is helpful for customers' reference.。

Upward blowing bottom conveying pump

Note: All the pictures in this article were taken by hyde manufacturer.。

4、Upward blowing bottom conveying pump performance advantage

Upward blowing bottom conveying pumps have the following advantages.

1. Efficient transportation

Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.

2. Good flexibility

It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.

3. Strong adaptability

Suitable for a variety of material types, such as powder, granular and other loose materials. The transportation distance is long, which can meet the transportation needs of different distances and different terrains. Upward blowing bottom conveying pumps of different models and specifications can be customized according to specific needs to adapt to different application scenarios.

4. High reliability

Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, it can still maintain good working performance and ensure the continuity and stability of material transportation.

5. Convenient maintenance

Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.

Upward blowing bottom conveying pump

5、Upward blowing bottom conveying pump principle

Upward blowing bottom conveying pumpthe principle is simple.When the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.，Cheap and high quality。

Upward blowing bottom conveying pump

6、Upward blowing bottom conveying pump structure composition

The Upward blowing bottom conveying pump structure is introduced as follows:

1. pump body

The core part of the Upward blowing bottom conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

2. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

3. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

4. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

5. pump body

The core part of the Upward blowing bottom conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

Upward blowing bottom conveying pump

Upward blowing bottom conveying pumpis a popular Upward blowing bottom conveying pump，as an efficient pneumatic conveying equipment。
