Introduction to HDV type pneumatic conveying pump and bin pump working principle

HDV type pneumatic conveying pumpalso known as sending tank, pneumatic conveying pump or bin pump, it is a pressure vessel that uses compressed air (or other inert gas) as power source.，is a HDV type pneumatic conveying pump newly developed by hyde。

1、Brief introduction of HDV type pneumatic conveying pump

HDV type pneumatic conveying pumpis a kind of equipment used for pneumatic conveying.。

HDV type pneumatic conveying pump

2、HDV type pneumatic conveying pump work site real shot

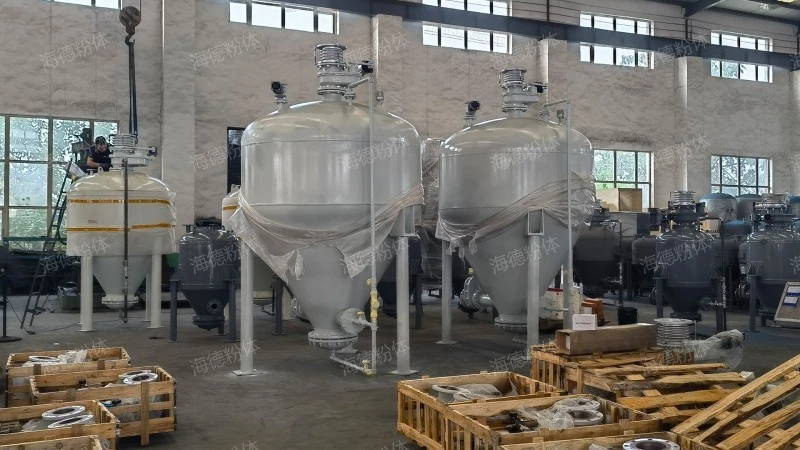

HDV type pneumatic conveying pump high-definition picture display, all-round shooting without dead ends, for our customers to visit.。

HDV type pneumatic conveying pump

Note: All the pictures in this article were taken by hyde powder manufacturer.。

3、Working principle of HDV type pneumatic conveying pump

The HDV type pneumatic conveying pump has the following principles.

1. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole HDV type pneumatic conveying pump system can enter the next feeding-conveying-discharging cycle.

2. Feeding stage

The feed valve of the HDV type pneumatic conveying pump is opened, and the material enters the pump body of the HDV type pneumatic conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

3. Feeding stage

The feed valve of the HDV type pneumatic conveying pump is opened, and the material enters the pump body of the HDV type pneumatic conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

4. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole HDV type pneumatic conveying pump system can enter the next feeding-conveying-discharging cycle.

5. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

HDV type pneumatic conveying pump

4、Functional advantages of HDV type pneumatic conveying pump

HDV type pneumatic conveying pumps have the following advantages.

1. Convenient maintenance

Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.

2. Strong adaptability

Suitable for a variety of material types, such as powder, granular and other loose materials. The transportation distance is long, which can meet the transportation needs of different distances and different terrains. HDV type pneumatic conveying pumps of different models and specifications can be customized according to specific needs to adapt to different application scenarios.

3. Efficient transportation

Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.

4. Good flexibility

It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.

5. Environmental protection and energy saving

Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the HDV type pneumatic conveying pump is relatively low, which is helpful for energy saving and emission reduction.

HDV type pneumatic conveying pump

5、HDV type pneumatic conveying pump structure composition

The HDV type pneumatic conveying pump structure is introduced as follows:

1. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

2. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

3. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

4. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

5. pump body

The core part of the HDV type pneumatic conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

HDV type pneumatic conveying pump

6、HDV type pneumatic conveying pump quotation

The HDV type pneumatic conveying pump price is introduced as follows:

1. service

There is a close relationship between service and price. High-quality service can not only avoid all worries in the process of product use, but also improve the overall strength and comprehensive credibility of manufacturers. In order to improve the service quality, hyde HDV type pneumatic conveying pump manufacturers provide comprehensive services for customers and products before, during and after sale, and at the same time make the price as favorable as possible to new and old customers, so that the HDV type pneumatic conveying pump price can meet the purchasing needs of customers.

2. brand

Different brands of products in the same series have more or less differences in product prices, and different brands of HDV type pneumatic conveying pump have more or less differences in price.

3. Self quality

Generally speaking, the higher the product quality, the higher the HDV type pneumatic conveying pump price. A reasonable balance is made between quality and price, so that the comprehensive quality of the product can meet the customer's use standards and meet the basic needs of customers in terms of price.

4. Manufacturer scale

There are many HDV type pneumatic conveying pump manufacturers on the market. Different manufacturers spend different costs, such as material costs, labor costs, manufacturing costs, etc., and their products are quoted differently.

5. select a qualified person

Different manufacturers have different material selection standards. The better the quality of the selected materials, the more expensive the products will be. On the contrary, the prices will be low. However, to avoid customers being deceived, compare several products of the same specification and model before deciding to purchase.

HDV type pneumatic conveying pump

HDV type pneumatic conveying pumpIt is mostly used in particle transport, powder conveying, material handling, pneumatic ash conveying, pneumatic transport, material handling and so on，is a popular HDV type pneumatic conveying pump。
