What is a Track type heating furnace? Introduction to the Working Principle of heating furnace

Track type heating furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，is a common Track type heating furnace。

1、Brief introduction of Track type heating furnace

Track type heating furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，Widely used inMetal forging heating,Energy conservation and environmental protection,Metal heat treatment,Metal melting and casting,Metal tempering and so on，is a kind of Track type heating furnace manufactured by One-combustion energy saving。

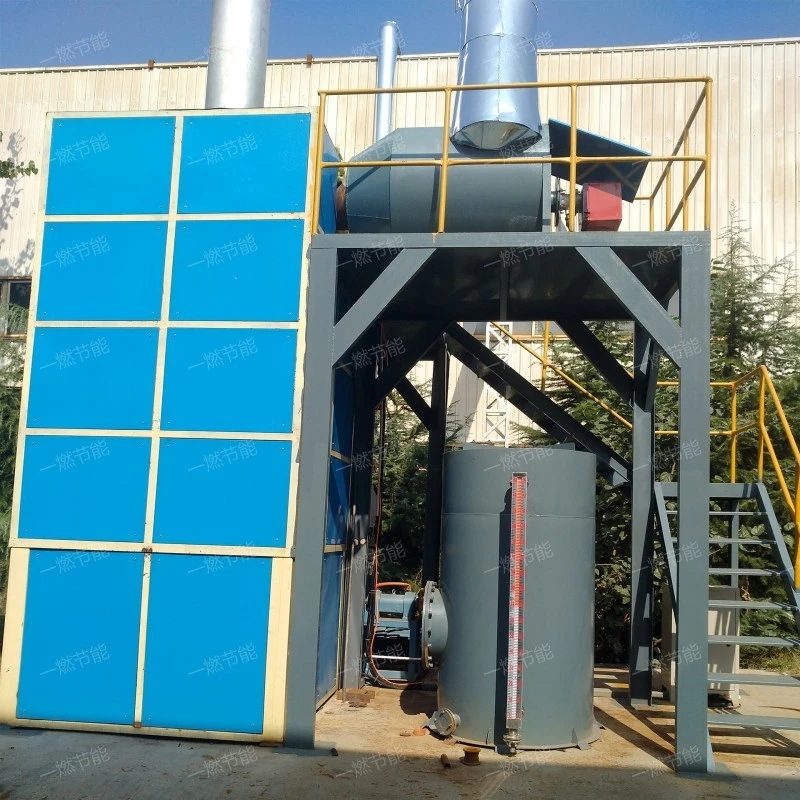

Track type heating furnace

2、Track type heating furnace structure composition

The Track type heating furnace structure is introduced as follows:

1. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

2. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

3. furnace chamber

A space for holding metallic materials for heating.

4. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

5. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

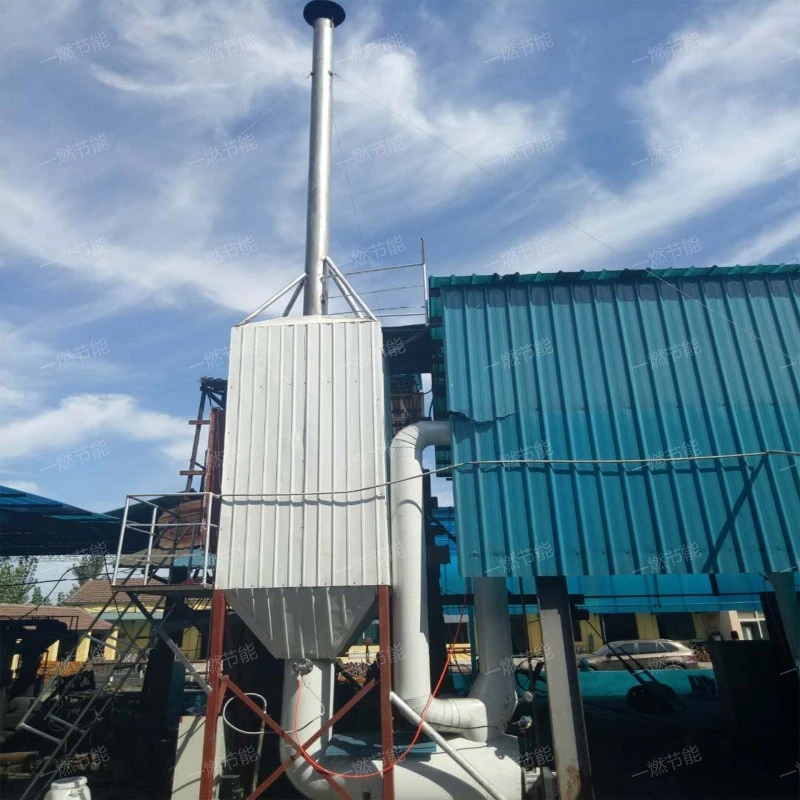

Track type heating furnace

3、Track type heating furnace function

Track type heating furnaceit has the functions of temper, hardening and tempering, Forging heating, temper and normalizing。

Track type heating furnace

4、Introduction of Track type heating furnace characteristics

Track type heating furnace has the following characteristics

1. Easy to maintain

The structural design of the Track type heating furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

2. energy saving and environmental protection

As a clean energy source, gas produces less waste gas and waste smoke after combustion, which is beneficial to environmental protection. At the same time, some Track type heating furnaces are also equipped with waste heat recovery system, which further improves the energy utilization efficiency.

3. Strong adaptability

The Track type heating furnace can be used for forging and heating of bar, round steel, square steel, steel plate and other metal materials, and has a wide range of applications.

4. Stable and reliable

The Track type heating furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

5. Easy to control

The combustion system and ventilation system of the Track type heating furnace can be adjusted as required to accurately control the temperature and atmosphere in the furnace and meet the heating requirements of different metal materials.

Track type heating furnace

5、Track type heating furnace application

Track type heating furnaces have the following purposes.

1. Energy conservation and environmental protection

The Track type heating furnace uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

2. Metal heat treatment

In addition to forging heating, Track type heating furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

3. Metal tempering

By properly heating and cooling the metal material, the Track type heating furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

4. Metal melting and casting

Although it is mainly used for forging heating, some types of Track type heating furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

5. Improve production efficiency

The Track type heating furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

Track type heating furnace

6、Brief introduction of Track type heating furnace

Track type heating furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，was developed and designed by One-combustion energy saving。

Track type heating furnace

Track type heating furnacethe advantage is Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.，multifunctional, with functions such as anneal, Casting heating, hardening and tempering, heat treatment and quench。
