Brief introduction of Double ended trolley forging furnace

Double ended trolley forging furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，multifunctional, with functions such as hardening and tempering, heat treatment, Casting heating, Forging heating and temper，the advantage is Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.。

1、Brief introduction of Double ended trolley forging furnace

Double ended trolley forging furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，is a kind of Double ended trolley forging furnace manufactured by One-combustion energy saving。

Double ended trolley forging furnace

2、Double ended trolley forging furnace structure composition

The Double ended trolley forging furnace structure is introduced as follows:

1. furnace chamber

A space for holding metallic materials for heating.

2. Radiation chamber

The heat load of the main place for Double ended trolley forging furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

3. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

Double ended trolley forging furnace

3、Double ended trolley forging furnace application

Double ended trolley forging furnaces have the following purposes.

1. Energy conservation and environmental protection

The Double ended trolley forging furnace uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

2. Metal tempering

By properly heating and cooling the metal material, the Double ended trolley forging furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

3. Metal melting and casting

Although it is mainly used for forging heating, some types of Double ended trolley forging furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

4. Metal forging heating

The Double ended trolley forging furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

5. Metal heat treatment

In addition to forging heating, Double ended trolley forging furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

Double ended trolley forging furnace

4、Advantages of Double ended trolley forging furnace principle

Double ended trolley forging furnacein the course of work,Heat of combustion based on fuel. Fuel gas (such as natural gas, liquefied petroleum gas, etc.) is mixed with combustion-supporting air through the burner and burned to produce high-temperature flame and flue gas. These high-temperature flames and smoke exchange heat with metal materials in the furnace, so that they gradually heat up to the temperature required for forging.，generally, it is composed of ventilation system, ventilation system, furnace chamber, convection chamber, recovery of waste heat and other major components，it has been widely used in chemical industry, Machinery manufacturing, machinery, heat treatment, pharmacy and other industries，it has the functions of quench, normalizing, anneal, quench and anneal，is designed by One-combustion energy saving with advanced technology。

Double ended trolley forging furnace

5、Double ended trolley forging furnace picture

The Double ended trolley forging furnace has been upgraded, and the beauty of details is appreciated.。

Double ended trolley forging furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

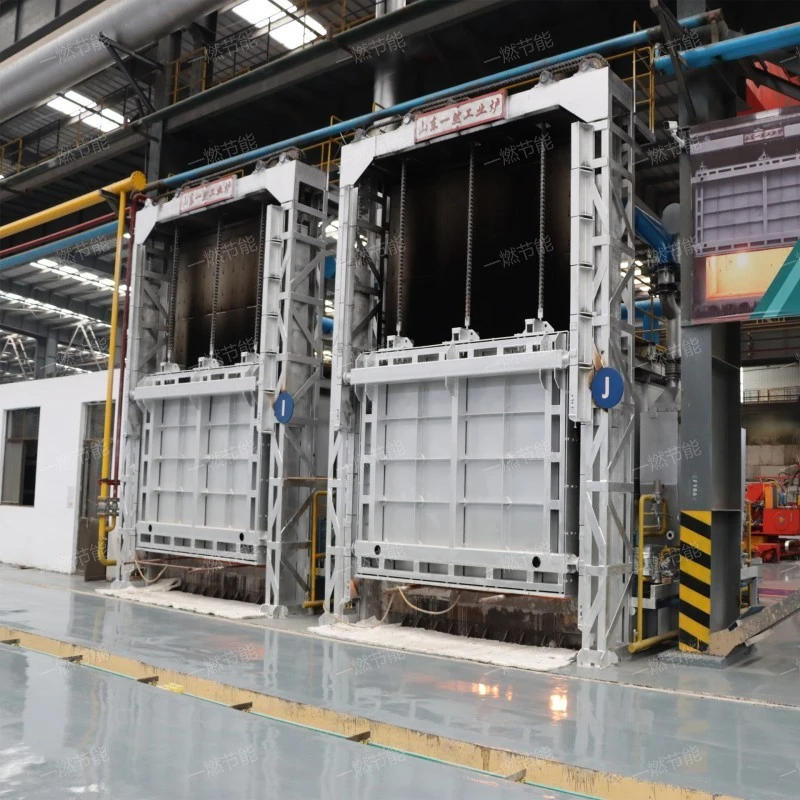

6、Double ended trolley forging furnace customer scene picture

The following pictures can be used for reference by new and old customers.。

Double ended trolley forging furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

Double ended trolley forging furnaceSimple structure and advanced technology.，Structure consists of recovery of waste heat, furnace chamber, ventilation system, Radiation chamber, combustor and so on，is a Double ended trolley forging furnace。
