What is a Gas through heating furnace? Introduction to the advantages and characteristics of the Forging furnace

Gas through heating furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.。

1、Brief introduction of Gas through heating furnace

Gas through heating furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，usually used in material, machinery, war industry, pharmacy, aerospace and other fields，the product looks atmospheric.。

Gas through heating furnace

2、Gas through heating furnace HD real picture

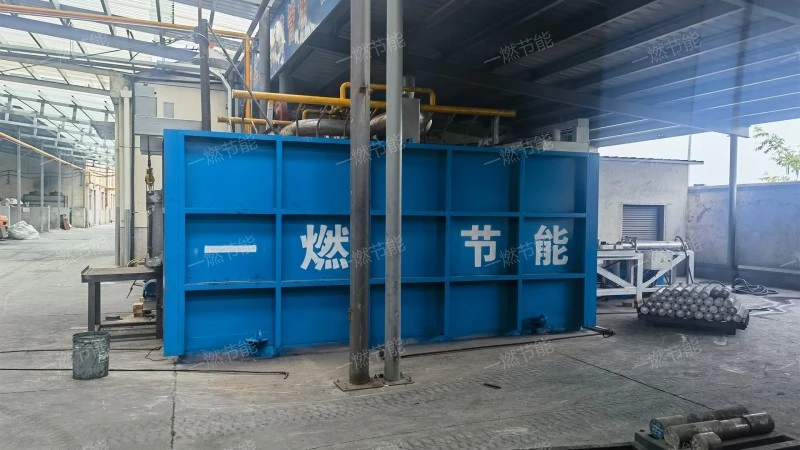

High-definition pictures of One-combustion energy saving Gas through heating furnace, showing different specifications and models.。

Gas through heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

3、Structural characteristics of Gas through heating furnace

The Gas through heating furnace structure is introduced as follows:

1. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

2. furnace chamber

A space for holding metallic materials for heating.

3. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

4. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

5. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

Gas through heating furnace

4、Working principle of Gas through heating furnace

Gas through heating furnacein the course of work,Heat of combustion based on fuel. Fuel gas (such as natural gas, liquefied petroleum gas, etc.) is mixed with combustion-supporting air through the burner and burned to produce high-temperature flame and flue gas. These high-temperature flames and smoke exchange heat with metal materials in the furnace, so that they gradually heat up to the temperature required for forging.，It is a product series that integrates Metal forging heating, Energy conservation and environmental protection, Metal tempering, Metal melting and casting and Metal forging heating，is a popular Gas through heating furnace，the advantage is Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.，It can be used for Improve production efficiency, Metal heat treatment, Energy conservation and environmental protection, Metal tempering, Metal melting and casting, Metal heat treatment and so on。

Gas through heating furnace

5、Gas through heating furnace structure

The Gas through heating furnace structure is introduced as follows:

1. Waste heat recovery system

Recover the waste heat in the exhaust gas of heating furnace to improve the energy utilization efficiency.

2. Radiation chamber

The heat load of the main place for Gas through heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

3. furnace chamber

A space for holding metallic materials for heating.

4. Radiation chamber

The heat load of the main place for Gas through heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

Gas through heating furnace

6、Gas through heating furnace function

Gas through heating furnaceit has the functions of hardening and tempering, anneal, Forging heating, normalizing and temper。

Gas through heating furnace

Gas through heating furnaceIt is mostly used in Metal heat treatment, Metal melting and casting, Metal forging heating, Metal heat treatment, Metal melting and casting, Improve production efficiency and so on，It is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.。
