Introduction to Cylindrical tube quenching furnace, forging furnace advantages, characteristics and principles

Cylindrical tube quenching furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，is carefully developed by One-combustion energy saving combined with advanced technology。

1、Brief introduction of Cylindrical tube quenching furnace

Cylindrical tube quenching furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，the product looks beautiful.，it has been widely used in light industry, petroleum, machinery, electron, surface treatment and other industries。

Cylindrical tube quenching furnace

2、Cylindrical tube quenching furnace structure composition

The Cylindrical tube quenching furnace structure is introduced as follows:

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

3. Radiation chamber

The heat load of the main place for Cylindrical tube quenching furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

4. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

Cylindrical tube quenching furnace

3、Cylindrical tube quenching furnace field real shot

You can buy Cylindrical tube quenching furnace according to your needs and show you Cylindrical tube quenching furnace videos.。

Cylindrical tube quenching furnace

As you can see from the live video.，One-combustion energy saving at work,The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.。

4、Cylindrical tube quenching furnace use

The purpose of Cylindrical tube quenching furnace is introduced as follows:

1. Metal forging heating

The Cylindrical tube quenching furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

2. Metal tempering

By properly heating and cooling the metal material, the Cylindrical tube quenching furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

3. Energy conservation and environmental protection

The Cylindrical tube quenching furnace uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

4. Metal melting and casting

Although it is mainly used for forging heating, some types of Cylindrical tube quenching furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

5. Improve production efficiency

The Cylindrical tube quenching furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

Cylindrical tube quenching furnace

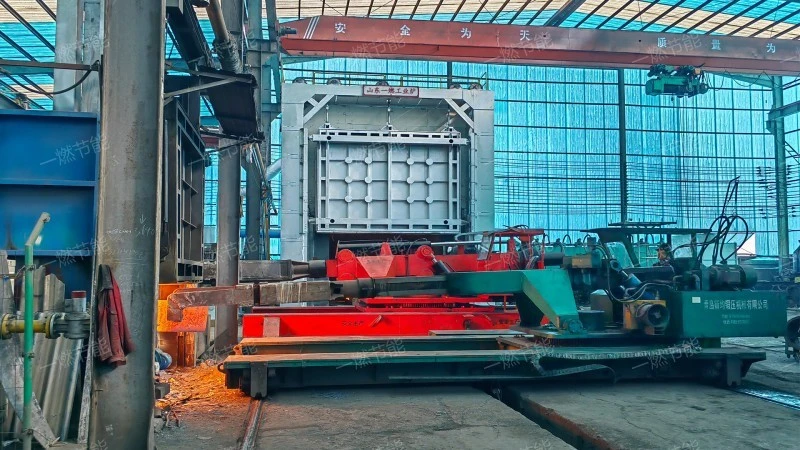

5、Cylindrical tube quenching furnace customer scene picture

Excellent materials, atmospheric design, fine workmanship, impeccable, trustworthy, all-round high-definition shooting, which is helpful for customers' reference.。

Cylindrical tube quenching furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

6、One-combustion energy saving service

Users should not only consider the quality, performance and price factors when buying Cylindrical tube quenching furnace, but also consider the after-sales service of manufacturers. Good after-sales service can reduce many unnecessary troubles for customers. One-combustion energy saving manufacturers always adhere to the service attitude of "customer is God", implement high-standard and high-quality after-sales service attitude, conduct regular customer satisfaction surveys, and strictly supervise the quality of after-sales service, so as to relieve customers' purchase worries and make buyers completely worry-free.。

One-combustion energy saving

Cylindrical tube quenching furnacethe advantage is The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.，It is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.。
