Introduction to Gas chamber heating furnace and forging furnace working principle

Gas chamber heating furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，Widely used inMetal tempering,Improve production efficiency,Metal forging heating,Energy conservation and environmental protection,Metal heat treatment and so on，it has been widely used in heat treatment, metallurgy, Household necessities, aerospace, machinery and other industries。

1、Brief introduction of Gas chamber heating furnace

Gas chamber heating furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，is a Gas chamber heating furnace，is based on One-combustion energy saving is a Gas chamber heating furnace newly developed by One-combustion energy saving。

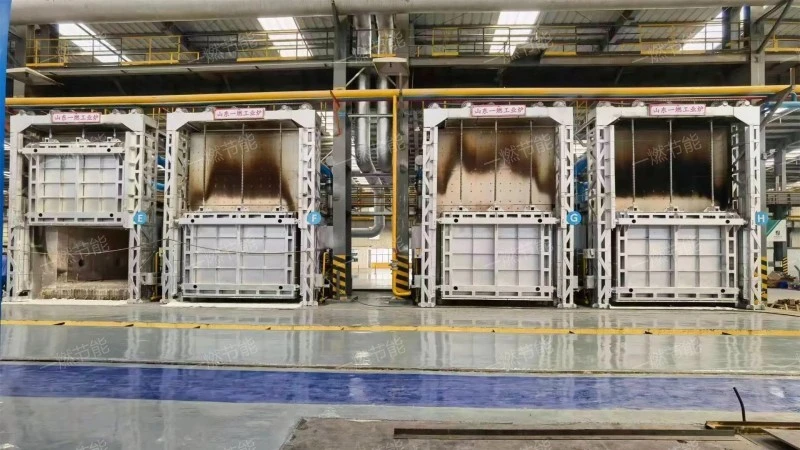

Gas chamber heating furnace

2、Gas chamber heating furnace function

Gas chamber heating furnacemultifunctional, with functions such as heat treatment, anneal, normalizing, Casting heating and temper，it is widely used in chemical industry, building materials, Machinery manufacturing, pharmacy and shipping，is a common Gas chamber heating furnace。

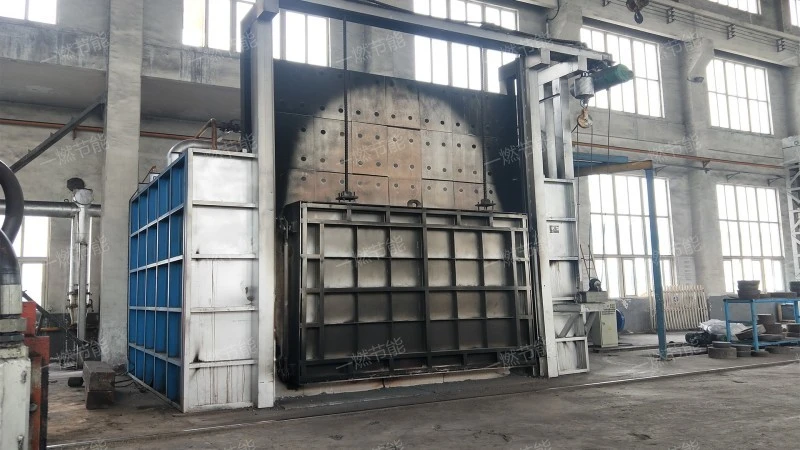

Gas chamber heating furnace

3、Gas chamber heating furnace display

Provide a variety of specifications and models of Gas chamber heating furnace, high-definition picture list.。

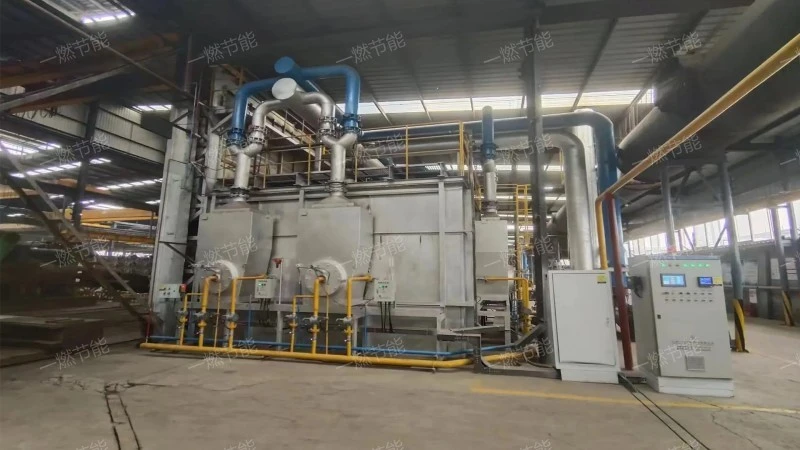

Gas chamber heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

4、Gas chamber heating furnace structure

The Gas chamber heating furnace structure is introduced as follows:

1. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

2. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

3. furnace chamber

A space for holding metallic materials for heating.

4. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

5. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

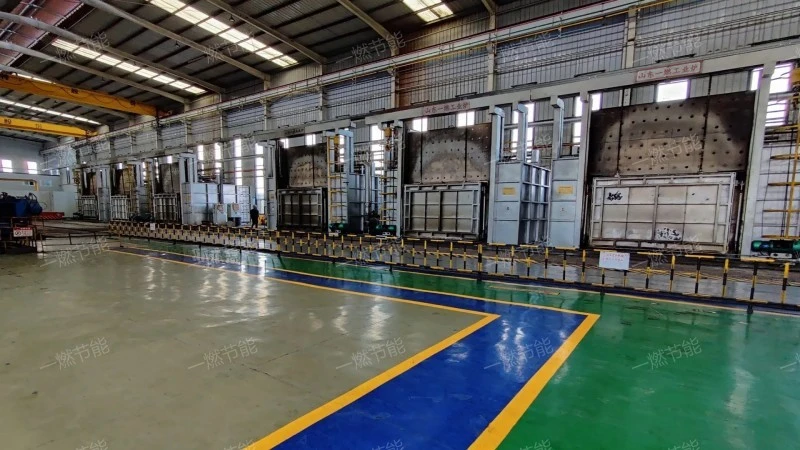

Gas chamber heating furnace

5、Gas chamber heating furnace application

Gas chamber heating furnaces have the following purposes.

1. Metal forging heating

The Gas chamber heating furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

2. Improve production efficiency

The Gas chamber heating furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

3. Metal melting and casting

Although it is mainly used for forging heating, some types of Gas chamber heating furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

4. Metal heat treatment

In addition to forging heating, Gas chamber heating furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

5. Metal forging heating

The Gas chamber heating furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

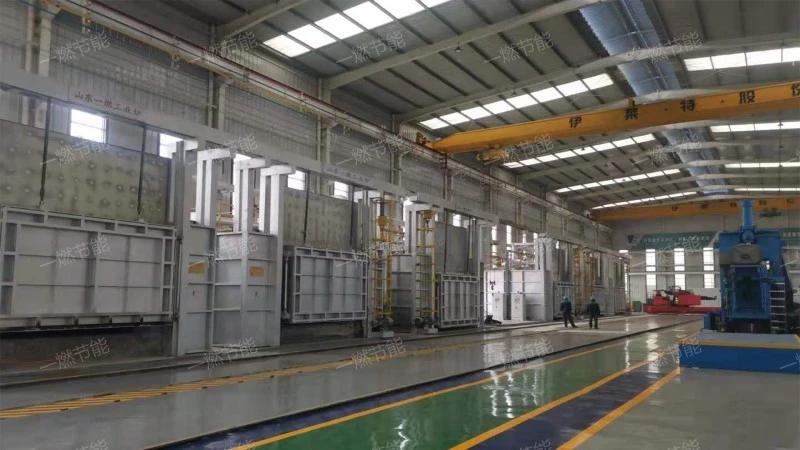

Gas chamber heating furnace

Gas chamber heating furnaceit has the functions of anneal, normalizing, Casting heating, heat treatment and Forging heating，the advantage is It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.。
