What is a DN400 rotary discharger? Introduction to the advantages and characteristics of unloader functions

DN400 rotary dischargeris a common material conveying equipment.，it is widely used inmetallurgy,dock,chemical industry,dock,chemical raw material and other industries。The following is to introduce the DN400 rotary discharger:

1、Brief introduction of DN400 rotary discharger

DN400 rotary dischargeris the main equipment for conveying bulk materials.。

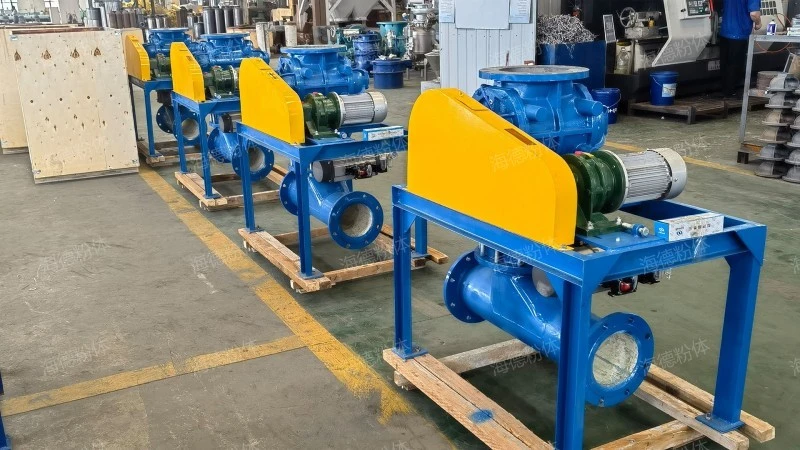

DN400 rotary discharger

2、DN400 rotary discharger characteristics

DN400 rotary dischargerlow noise,handsome appearance,strong reliability,reliable work,good sealing performance。

DN400 rotary discharger

3、Structural characteristics of DN400 rotary discharger

The DN400 rotary discharger structure is introduced as follows:

1. Motor and transmission device

The motor provides power for the DN400 rotary discharger, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

2. Rotor and shell

The rotor is the core component of the DN400 rotary discharger, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

3. impeller

Impeller is the key part of the DN400 rotary discharger to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

4. sealing element

Seals are used to ensure the sealing performance of the DN400 rotary discharger in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

5. Equalizing exhaust port

The side of the DN400 rotary discharger body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

DN400 rotary discharger

4、DN400 rotary discharger principle

DN400 rotary dischargerat the start of the operation,The motor reducer drives the impeller to rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the impellers. With the rotation of the impellers, the materials are transported to the lower part and discharged. At the same time, the exhaust port exhausts the high-pressure gas generated by the rotation of the impeller, which reduces the phenomenon of gas ejection and ensures the continuity and stability of material transportation.，has been favored by more and more customers.。

DN400 rotary discharger

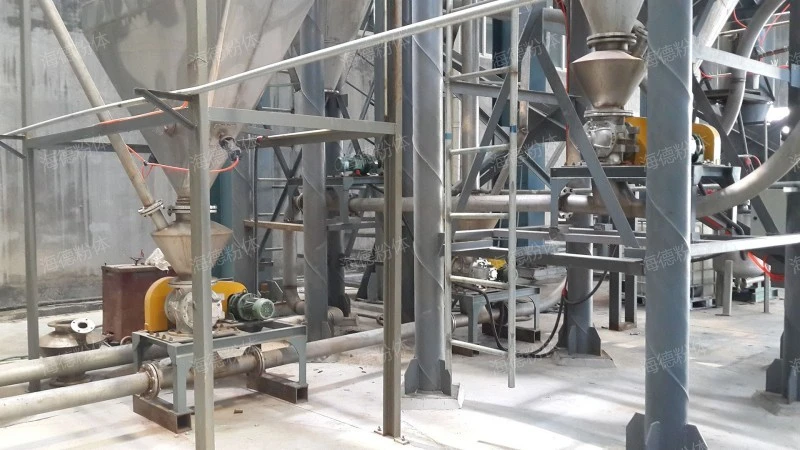

5、On-site real shot of DN400 rotary discharger

Various styles and styles of DN400 rotary discharger, complete models, for you to choose at will.。

DN400 rotary discharger

Note: All the pictures in this article were taken by hyde manufacturer.。

DN400 rotary dischargeris widely used in powder engineering, pneumatic conveying and dust removal system.，it can be used in mine, metallurgy, grain processing, building materials cement, plastic metallurgy and other industries。
