Introduction to 316L stainless steel Roots blower and Roots Blower advantages and features

316L stainless steel Roots bloweris a device that generates positive pressure or negative pressure through the relative rotation of two impellers, thus compressing and conveying gas.，the principle is simple.When the motor drives one impeller to rotate, the other impeller will rotate synchronously at the same speed and in the opposite direction under the action of the synchronous gear. In the process of rotation, because the gaps between impeller and impeller, impeller and casing, impeller and wallboard are very small, a vacuum state is formed at the air inlet, and air is sucked into the air inlet cavity under the action of atmospheric pressure. As the impeller continues to rotate, two blades of each impeller, the wallboard and the casing form a sealed cavity, and the air in the air inlet cavity is continuously brought to the exhaust cavity by the sealed cavity formed by the two blades. Because the impellers in the exhaust cavity are meshed with each other, the air between the two blades is squeezed out. After continuous inhalation and extrusion, air is continuously transported from the air inlet to the air outlet, completing the whole gas transportation process.，the product looks atmospheric.，is a popular 316L stainless steel Roots blower，It has a wide range of uses, and is often used insewage disposal,Desulfurization oxidation,aquaculture,dry,mix and so on。

1、Brief introduction of 316L stainless steel Roots blower

316L stainless steel Roots bloweris a double impeller synchronous compression machine, belonging to a positive displacement blower.，the advantage is The air volume is directly proportional to the rotating speed, so its air output is very stable and basically unaffected by pressure changes. This characteristic makes the 316L stainless steel Roots blower perform well in many situations where stable airflow is needed.、Simple structural design, stable and reliable operation and convenient maintenance. This enables it to maintain high working efficiency and stability in long-term operation.、In the process of air intake and exhaust, the 316L stainless steel Roots blower will not produce air pulsation, which means that it does not need an additional buffer gas tank to output gas smoothly. This is particularly important for processes that require stable airflow.、Due to the adoption of synchronous gear transmission and small gap design, the 316L stainless steel Roots blower runs stably and reliably, without contact and wear parts, and has a long service life.、The structural form of the three-blade rotor and the reasonable structure of the air inlet and outlet in the shell make the 316L stainless steel Roots blower less vibration and noise.，Cheap and high quality。

316L stainless steel Roots blower

2、Structural characteristics of 316L stainless steel Roots blower

The 316L stainless steel Roots blower structure is introduced as follows:

1. wallboard

It is mainly used to connect the casing with the impeller, support the rotation of the impeller, and play the role of end sealing.

2. rotator

The core components are two identical lobed rotors, which usually adopt involute or epicycloid envelope design to ensure close cooperation during rotation and reduce leakage.

3. case

It mainly plays the role of supporting (wallboard, impeller, muffler) and fixing. The casing is the external structure of the 316L stainless steel Roots blower, which is used to support and fix the rotor, bearings and other components, while ensuring the gas tightness.

4. bearing

It is used to support the rotation of the rotor and bear the weight of the rotor and the load during operation.

5. fuel tank

Mainly used for storing lubricating oil used for lubricating gears and bearings. The oil tank is used to store lubricating oil to lubricate bearings and gears and reduce wear and friction.

316L stainless steel Roots blower

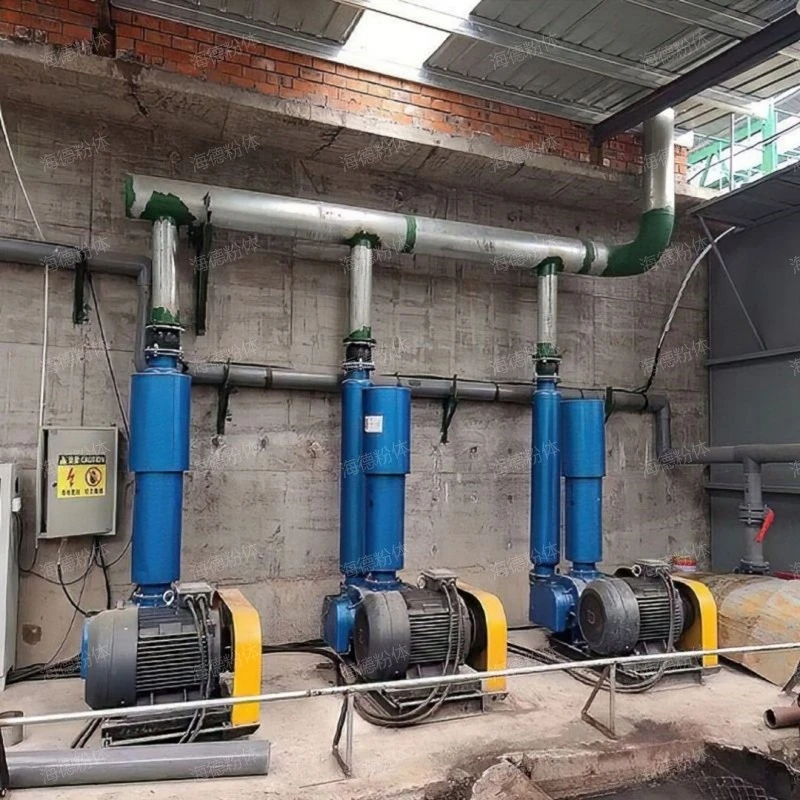

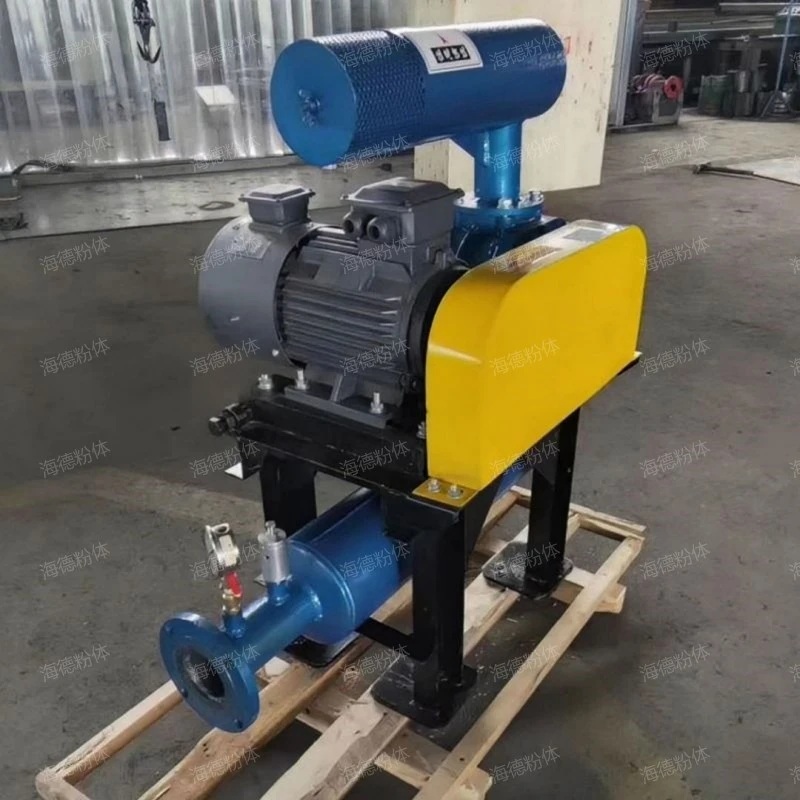

3、316L stainless steel Roots blower HD real picture

Excellent material selection,the product looks beautiful., trustworthy, panoramic shooting, helpful for customer reference.。

316L stainless steel Roots blower

Note: All the pictures in this article were taken by hyde manufacturer.。

4、Introduction of advantages of 316L stainless steel Roots blower

The advantages of 316L stainless steel Roots blower are as follows:

1. Simple structure and convenient manufacture

The 316L stainless steel Roots blower is simple in design and easy to manufacture and maintain.

2. Long service life

The mechanical friction of the 316L stainless steel Roots blower is small and the loss is low, so its service life is relatively long. This enables it to maintain high working efficiency and stability in long-term operation.

3. Convenient maintenance

The structure of the 316L stainless steel Roots blower is relatively simple and easy to maintain.

4. Low noise and vibration

The three-leaf rotor structure of the 316L stainless steel Roots blower makes it less vibration and noise. This feature makes the 316L stainless steel Roots blower work normally in situations where a quiet environment is needed.

5. Smooth operation

Due to the adoption of synchronous gear transmission and small gap design, the 316L stainless steel Roots blower runs stably and reliably, without contact and wear parts, and has a long service life.

316L stainless steel Roots blower

5、Introduction of 316L stainless steel Roots blower characteristics

316L stainless steel Roots blowerfeatures include Precise control, economical and durable, stable and reliable, low noise and convenient maintenance，at the start of the operation,Gas is compressed and transported based on the relative motion of two lobed rotors in the cylinder. When the two rotors rotate, the volume between them changes constantly, thus realizing the suction, compression and discharge of gas.，it has the structure of bearing, rotator, muffler, impeller and fuel tank，This productThe structure is novel, special, advanced, reasonable and scientific.。

316L stainless steel Roots blower

6、316L stainless steel Roots blower performance advantage

316L stainless steel Roots blowers have the following advantages.

1. Smooth operation

The 316L stainless steel Roots blower has simple structural design, stable and reliable operation and convenient maintenance. This enables it to maintain high working efficiency and stability in long-term operation.

2. Long service life

The mechanical friction of the 316L stainless steel Roots blower is small and the loss is low, so its service life is relatively long. This enables it to maintain high working efficiency and stability in long-term operation.

3. Economical and durable

The design without lubrication reduces the maintenance cost and improves the economy of the equipment.

4. Strong adaptability

316L stainless steel Roots blowers are suitable for many purposes and have been widely used in various fields.

5. Low noise and vibration

The three-leaf rotor structure of the 316L stainless steel Roots blower makes it less vibration and noise. This feature makes the 316L stainless steel Roots blower work normally in situations where a quiet environment is needed.

316L stainless steel Roots blower

316L stainless steel Roots blowerit is mainly composed of rotator, case, muffler, fuel tank and impeller，productSimple structure and advanced technology.，is a double impeller synchronous compression machine, belonging to a positive displacement blower.。
