Introduction to Positive pressure bin type ash conveying pump, bin pump advantages, characteristics and principles

Positive pressure bin type ash conveying pumpalso known as sending tank, pneumatic conveying pump or bin pump.，efficient transportation,environmental protection and energy saving,simple operation,omniseal,high reliability，Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.、Suitable for a variety of material types, such as powder, granular and other loose materials. The transportation distance is long, which can meet the transportation needs of different distances and different terrains. Positive pressure bin type ash conveying pumps of different models and specifications can be customized according to specific needs to adapt to different application scenarios.、The operation mode is fully enclosed and automatic, and it can also be operated manually.、The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.、Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the Positive pressure bin type ash conveying pump is relatively low, which is helpful for energy saving and emission reduction.，can be customized according to user's needs.。The following is to introduce the Positive pressure bin type ash conveying pump:

1、Brief introduction of Positive pressure bin type ash conveying pump

Positive pressure bin type ash conveying pumpis a professional equipment adopting positive pressure pneumatic conveying mode.，Widely used inpneumatic transport,material handling,environmental protection and dust removal,powder conveying,environmental protection and dust removal and so on，usually used in food service industry, chemical lines, grain processing, Metallurgical industry, Building materials industry and other fields，is a Positive pressure bin type ash conveying pump，The structure is novel, special, advanced, reasonable and scientific.，it is usually composed of intake valve, control system, fluidizer, air evacuation valve and pump body。

Positive pressure bin type ash conveying pump

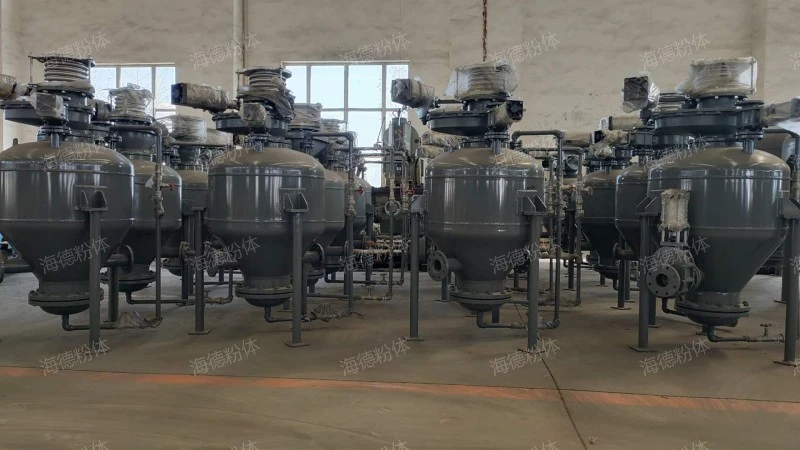

2、Positive pressure bin type ash conveying pump real shot picture

Positive pressure bin type ash conveying pump HD factory map, all-round shooting, for our customers to visit.。

Positive pressure bin type ash conveying pump

Note: All the pictures in this article were taken by hyde powder manufacturer.。

3、Structural advantages of Positive pressure bin type ash conveying pump

The Positive pressure bin type ash conveying pump has the following structure

1. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

2. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

3. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

4. pump body

The core part of the Positive pressure bin type ash conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

5. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

Positive pressure bin type ash conveying pump

4、Positive pressure bin type ash conveying pump function

Positive pressure bin type ash conveying pumpit has the functions of powder conveying, pneumatic transport, pneumatic ash conveying, particle transport and environmental protection and dust removal。

Positive pressure bin type ash conveying pump

5、Working principle of Positive pressure bin type ash conveying pump

The principle of Positive pressure bin type ash conveying pump is introduced as follows:

1. Feeding stage

The feed valve of the Positive pressure bin type ash conveying pump is opened, and the material enters the pump body of the Positive pressure bin type ash conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

2. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

3. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Positive pressure bin type ash conveying pump system can enter the next feeding-conveying-discharging cycle.

4. Feeding stage

The feed valve of the Positive pressure bin type ash conveying pump is opened, and the material enters the pump body of the Positive pressure bin type ash conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

5. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

Positive pressure bin type ash conveying pump

6、Positive pressure bin type ash conveying pump price

The Positive pressure bin type ash conveying pump price is introduced as follows:

1. regional advantages

If the location of the manufacturer is superior, its transportation will be more convenient. hyde detailed address:Shanggao District, Zhangqiu District, Jinan City, Shandong Province has convenient transportation, which provides a good convenience for the transportation of Positive pressure bin type ash conveying pump.

2. technology content

The more advanced the technology, the higher the price will be, otherwise the product price will be low, and customers must pay attention to whether their own technology meets the production requirements when purchasing products.

3. service

There is a close relationship between service and price. High-quality service can not only avoid all worries in the process of product use, but also improve the overall strength and comprehensive credibility of manufacturers. In order to improve the service quality, hyde Positive pressure bin type ash conveying pump manufacturers provide comprehensive services for customers and products before, during and after sale, and at the same time make the price as favorable as possible to new and old customers, so that the Positive pressure bin type ash conveying pump price can meet the purchasing needs of customers.

4. quality factor

The condition of the product itself has a great influence on its price, and the cost of the product with excellent quality is higher, which will lead to the increase of the selling price of the product. Therefore, this is an important factor that causes the price fluctuation and change of the Positive pressure bin type ash conveying pump.

5. deploy

The overall configuration has a great influence on the price. Generally speaking, the higher the configuration, the higher its cost input and the higher the selling price of the product, which is beyond doubt. hyde powder has made a comprehensive thinking on the overall configuration of products, and at the same time has strictly controlled the material selection and design of products, so the price of products with the same configuration can easily meet the actual purchasing needs of customers.

Positive pressure bin type ash conveying pump

Positive pressure bin type ash conveying pumpit has the characteristics of omniseal, large conveying capacity, meet the requirements of environmental protection, simple operation and simple operation，is a kind of high quality and low price Positive pressure bin type ash conveying pump，the advantage is Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.、The operation is simple and convenient, and usually adopts automatic control mode, which is suitable for the actual needs of engineering. Automatic control can be realized by programming, which reduces manual operation and labor intensity.、It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.、Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the Positive pressure bin type ash conveying pump is relatively low, which is helpful for energy saving and emission reduction.、Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, the Positive pressure bin type ash conveying pump can still maintain good working performance, ensuring the continuity and stability of material transportation.。
