Introduction to AV pump particle conveying, advantages, characteristics and principles of AV pump

AV pump particle conveyingis a commonly used powder conveying equipment，at runtime,Using the pressure difference generated by compressed air in the pipeline, the material is pushed to be transported along the pipeline at a speed lower than the suspension speed. This transportation mode avoids the complete mixing of materials and transmission media, reduces the risk of material wear and pipeline blockage, and allows a long transportation distance and moderate transportation capacity.，be of simple construction,flexible installation,maintenance workload is small,large conveying capacity,good ash-gas ratio，has been favored by more and more customers.。The following is to introduce the AV pump particle conveying:

1、Brief introduction of AV pump particle conveying

AV pump particle conveyingis an important part of dense-phase pneumatic conveying system to use the energy of air flow to continuously convey powdery and granular materials，the principle is simple.Mainly based on dense-phase low-speed pneumatic conveying. It transports materials at a speed lower than the suspension speed, and the materials move along the pipeline in a continuous dune shape or in a state where air plugs and material plugs are alternately arranged. This conveying mode allows the conveying speed of materials to be much lower than the suspension speed, thus avoiding the standard questions caused by the high speed of materials in traditional pneumatic conveying.，is developed and improved by Hyde powder。

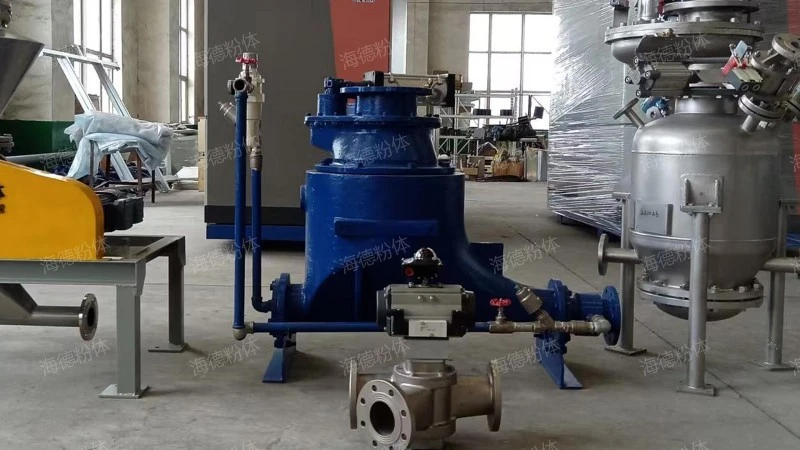

AV pump particle conveying

2、Structural characteristics of AV pump particle conveying

The AV pump particle conveying structure is introduced as follows:

1. pressure transducer

The pressure sensor is used to monitor the pressure change in the AV pump particle conveying system. When the pressure in the system reaches the preset value, the pressure sensor will send a signal to the electric cabinet to control the switch of the intake valve and the running state of the AV pump particle conveying.

2. Intake pipe

The air intake pipe is a pipe system that provides compressed air to the AV pump particle conveying. A group of AV pump particle conveyings usually share one air intake pipe, but auxiliary air intake pipes can be added according to the number of AV pump particle conveyings. The quality of the air inlet pipeline is required to ensure that the compressed air used for transportation reaches a certain pressure dew point.

3. Ash tank body

As the main part of the AV pump particle conveying, the ash chute body is used to receive and store the materials to be transported. It usually has the characteristics of wear resistance and corrosion resistance to meet the transportation needs of different materials.

4. level-sensing device

The material level gauge is usually installed on the feed bin to detect the material in the ash hopper. When the material reaches a certain height, the material level gauge will send a signal to the electric control box to trigger the operation of the AV pump particle conveying.

5. Ash conveying pipeline

Ash conveying pipeline is a pipeline system connecting the AV pump particle conveying and the terminal ash storage. After being compressed in the AV pump particle conveying, the materials are transported to the terminal ash storage for storage or further treatment through the ash conveying pipeline.

AV pump particle conveying

3、AV pump particle conveying application

AV pump particle conveyingIt is a product series that integrates save space, material handling, reduce material loss, environmental protection and dust removal and process control，it has the characteristics of wide applicability, strong adjustability, easy maintenance, be of simple construction and high degree of automation，super quality and competitive price。

AV pump particle conveying

4、AV pump particle conveying characteristics

AV pump particle conveyingthe main features are stand wear and tear, compact structure, environmental protection, strong adjustability and wide applicability。

AV pump particle conveying

5、Working principle of AV pump particle conveying

AV pump particle conveyingat the start of the operation,Mainly based on the power of compressed air, the continuous transportation of materials is realized by dense-phase low-speed pneumatic transportation.，it has the functions of reduce material loss, material handling, process control, environmental protection and dust removal and save space。

AV pump particle conveying

AV pump particle conveyingit can be used in building materials, metallurgy, ferrous metallurgy, medicine, heavy industry and other industries，it has the structure of ash tank body, feed dome valve, intake pipe, air control box and electric cabinet，productThe overall structural design is simple, diverse and beautiful.，the product looks atmospheric.。
