What is a AV pump material conveying? AV pump specifications, models, and parameters

AV pump material conveyingis a kind of material conveying equipment which uses the energy of air flow to continuously convey powdery and granular materials，Widely used inmaterial handling,material handling,environmental protection and dust removal,process control,save space and so on，is carefully developed by Hyde combined with advanced technology。The following is to introduce the AV pump material conveying:

1、Brief introduction of AV pump material conveying

AV pump material conveyingis an important part of dense-phase pneumatic conveying system to use the energy of air flow to continuously convey powdery and granular materials，It is mostly used in reduce material loss, material handling, environmental protection and dust removal, save space, process control, reduce material loss and so on。

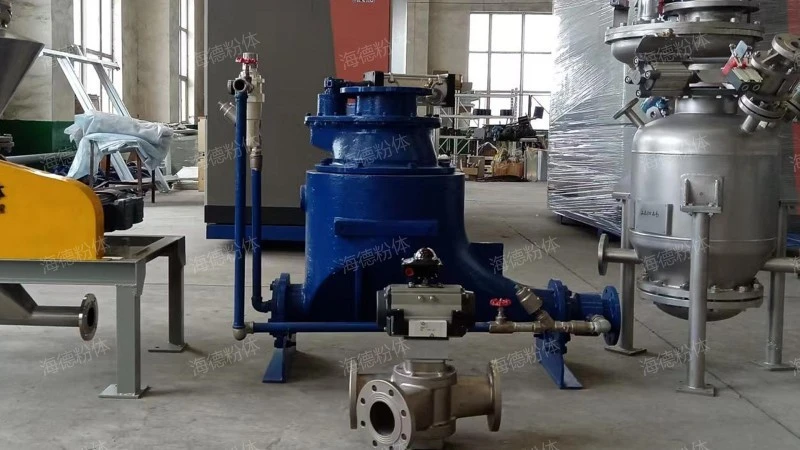

AV pump material conveying

2、Introduction of AV pump material conveying characteristics

AV pump material conveyingstand wear and tear,good ash-gas ratio,easy maintenance,compact structure,convenient maintenance，is a common equipment for pneumatic conveying。

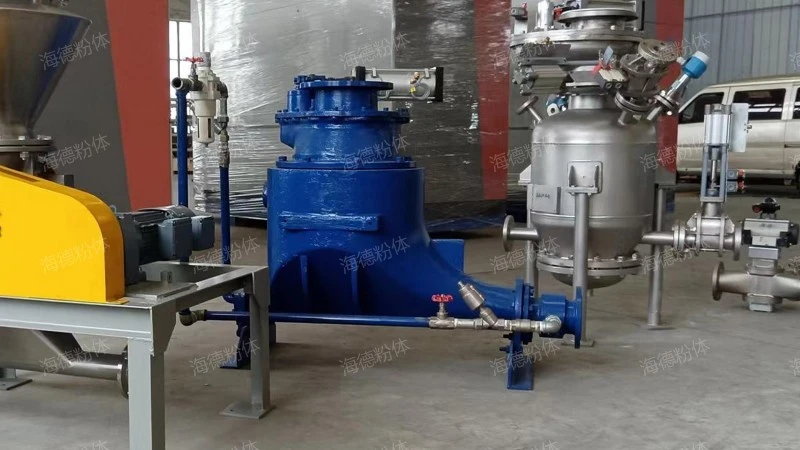

AV pump material conveying

3、AV pump material conveying HD picture

Various styles and styles of AV pump material conveying, complete models, for you to choose at will.。

AV pump material conveying

Note: All the pictures in this article were taken by Hyde powder manufacturer.。

4、Advantages of AV pump material conveying principle

AV pump material conveyingin the course of work,Mainly based on dense-phase low-speed pneumatic conveying. It transports materials at a speed lower than the suspension speed, and the materials move along the pipeline in a continuous dune shape or in a state where air plugs and material plugs are alternately arranged. This conveying mode allows the conveying speed of materials to be much lower than the suspension speed, thus avoiding the standard questions caused by the high speed of materials in traditional pneumatic conveying.，Simple structure and advanced technology.，generally, it is composed of air control box, intake pipe, ash tank body, pressure transducer, feed dome valve and other major components，super quality and competitive price。

AV pump material conveying

5、AV pump material conveying structure composition

The AV pump material conveying has the following structure

1. pressure transducer

The pressure sensor is used to monitor the pressure change in the AV pump material conveying system. When the pressure in the system reaches the preset value, the pressure sensor will send a signal to the electric cabinet to control the switch of the intake valve and the running state of the AV pump material conveying.

2. electric cabinet

The electric cabinet is the control center of the AV pump material conveying system, which is responsible for receiving signals from various sensors and controlling the operation of the AV pump material conveying according to the preset program. It usually has the function of programmable controller, and can realize accurate control of the AV pump material conveying system.

3. Feed dome valve

The feeding dome valve is the key component to control the material entering the AV pump material conveying. It can be opened when needed, allowing materials to enter the AV pump material conveying, and closed when not needed to ensure that materials will not leak.

4. Auxiliary blowing device

The auxiliary blowing device is used to blow the pipeline and the interior of the AV pump material conveying during the operation of the AV pump material conveying to prevent material blockage and deposition. This helps to keep the AV pump material conveying system running smoothly.

5. Air control box

Each AV pump material conveying is equipped with an air control box to control the running state of the AV pump material conveying. The air control box controls the switch of the air inlet valve by receiving the signal from the electric control box, so as to realize the adjustment of the air pressure in the AV pump material conveying.

AV pump material conveying

6、Why choose Hyde?

Choosing a suitable AV pump material conveying manufacturer requires comprehensive consideration of many aspects. First of all, we should examine the strength of manufacturers, including production capacity, R&D team and industry experience. Strong manufacturers can better ensure product supply and innovation ability. Secondly, product quality is the key, and it is evaluated by product certification, material selection and manufacturing process to ensure the durability of products. Product performance can not be ignored, so we should choose manufacturers with matching technical parameters, rich types and customized services according to actual needs. After-sales service is equally important. Professional and timely service team, perfect after-sales content and extensive service network can make users worry about nothing. In addition, market reputation is also an important reference. We can understand the reputation and status of manufacturers through customer evaluation, industry reputation and award-winning honor. Finally, it is necessary to analyze the price and cost performance, and on the premise of ensuring the quality and performance, choose a manufacturer with reasonable price and high cost performance, so as to purchase AV pump material conveying products that meet the demand and have good cost performance.。

Hyde powder

AV pump material conveyingis a AV pump material conveying，is a common powder conveying equipment，Mainly based on the power of compressed air, the continuous conveying of powdery materials is realized by dense-phase low-speed pneumatic conveying.。
