Introduction to Carbon steel AV conveying pump, introduction to AV pump function advantages and characteristics

Carbon steel AV conveying pumpis a common equipment for pneumatic conveying，at work,Mainly based on the power of compressed air, the continuous transportation of materials is realized by dense-phase low-speed pneumatic transportation.。

1、Brief introduction of Carbon steel AV conveying pump

Carbon steel AV conveying pumpis a commonly used powder conveying equipment，corrosion-resistant,be of simple construction,good ash-gas ratio,large conveying capacity,flexible installation，multifunctional, with functions such as environmental protection and dust removal, process control, reduce material loss, save space and material handling。

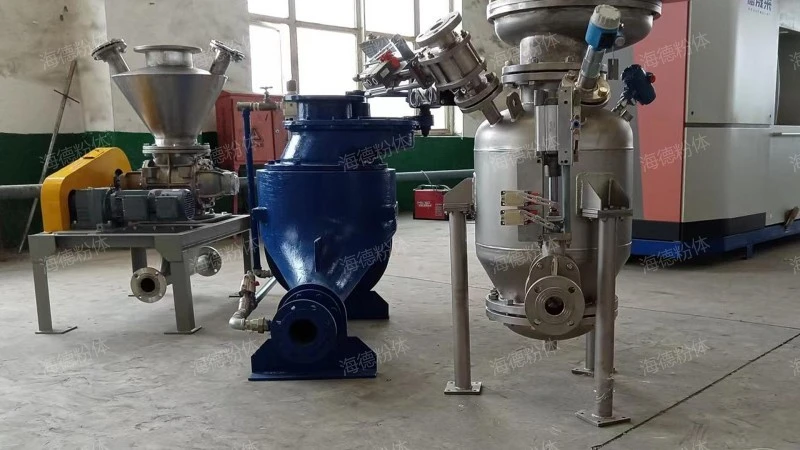

Carbon steel AV conveying pump

2、Carbon steel AV conveying pump structure composition

The Carbon steel AV conveying pump has the following structure

1. pressure transducer

The pressure sensor is used to monitor the pressure change in the Carbon steel AV conveying pump system. When the pressure in the system reaches the preset value, the pressure sensor will send a signal to the electric cabinet to control the switch of the intake valve and the running state of the Carbon steel AV conveying pump.

2. Ash conveying pipeline

Ash conveying pipeline is a pipeline system connecting the Carbon steel AV conveying pump and the terminal ash storage. After being compressed in the Carbon steel AV conveying pump, the materials are transported to the terminal ash storage for storage or further treatment through the ash conveying pipeline.

3. Intake pipe

The air intake pipe is a pipe system that provides compressed air to the Carbon steel AV conveying pump. A group of Carbon steel AV conveying pumps usually share one air intake pipe, but auxiliary air intake pipes can be added according to the number of Carbon steel AV conveying pumps. The quality of the air inlet pipeline is required to ensure that the compressed air used for transportation reaches a certain pressure dew point.

4. pressure transducer

The pressure sensor is used to monitor the pressure change in the Carbon steel AV conveying pump system. When the pressure in the system reaches the preset value, the pressure sensor will send a signal to the electric cabinet to control the switch of the intake valve and the running state of the Carbon steel AV conveying pump.

5. Feed dome valve

The feeding dome valve is the key component to control the material entering the Carbon steel AV conveying pump. It can be opened when needed, allowing materials to enter the Carbon steel AV conveying pump, and closed when not needed to ensure that materials will not leak.

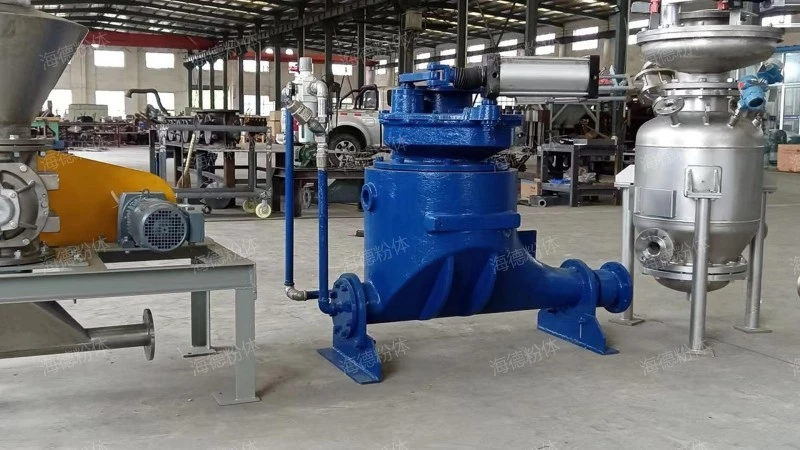

Carbon steel AV conveying pump

3、Advantages of Carbon steel AV conveying pump principle

Carbon steel AV conveying pumpat the start of the operation,Using compressed air as power source, a certain air pressure difference is formed in the door by controlling the switch of the air inlet valve, so as to push the materials to be transported along the pipeline. The whole conveying process is carried out at a speed lower than the suspension speed, which avoids the complete mixing of materials and transmission media and reduces the risk of material wear and pipeline blockage.，wide applicability,compact structure,large conveying capacity,energy-efficient,good ash-gas ratio。

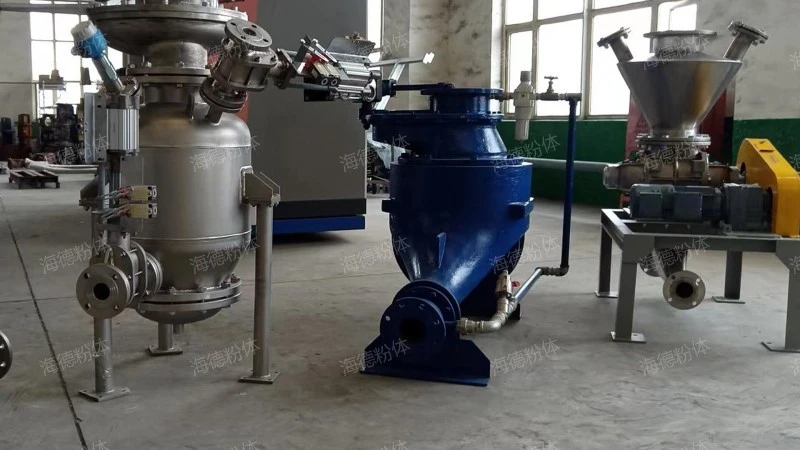

Carbon steel AV conveying pump

4、Introduction of Carbon steel AV conveying pump characteristics

Carbon steel AV conveying pumpfeatures include strong adjustability, strong adjustability, environmental protection, maintenance workload is small and convenient maintenance，it has the functions of environmental protection and dust removal, material handling, process control, save space and reduce material loss，Multiple pumps can be connected in series, which is suitable for short-distance centralized transportation, and the transportation distance can reach a certain range, which enhances the flexibility of its application、The structure is relatively simple, the volume is relatively small, and the body is cast at one time and machined, which makes its maintenance relatively easy、It needs to be selected and used according to the specific needs and working environment, and at the same time, it needs to pay attention to maintenance to ensure its normal operation and prolong its service life、The pump body itself is wear-resistant and corrosion-resistant, and can transport high-temperature and rough materials、The fully enclosed transportation system is adopted, and the materials are transported in a closed pipeline, which effectively prevents the materials from absorbing moisture, fouling or mixing with other impurities during transportation，is a kind of Carbon steel AV conveying pump manufactured by Hyde。

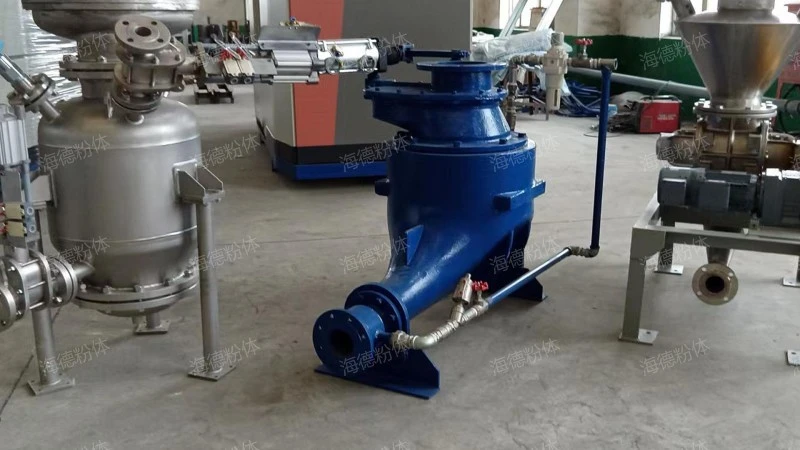

Carbon steel AV conveying pump

5、Functional advantages of Carbon steel AV conveying pump

Carbon steel AV conveying pumps have the following advantages.

1. Closed conveying system

The Carbon steel AV conveying pump adopts a fully enclosed transportation system, and the materials are transported in a closed pipeline, which effectively prevents the materials from absorbing moisture, fouling or mixing with other impurities during transportation.

2. Small size and light weight

The Carbon steel AV conveying pump has the characteristics of flexible installation, which is convenient to move and install in different working occasions.

3. Wear and corrosion resistance

The Carbon steel AV conveying pump pump itself is wear-resistant and corrosion-resistant, which can run stably for a long time and reduce the failure and downtime caused by wear and corrosion.

4. Maintenance workload is small

Because of the simple structure and excellent quality, the workload of Carbon steel AV conveying pump maintenance is relatively small, which reduces the maintenance cost.

5. Low energy consumption

Compared with other types of pumps, the Carbon steel AV conveying pump consumes less energy during operation, which helps to reduce the use cost.

Carbon steel AV conveying pump

6、Introduction of advantages of Carbon steel AV conveying pump

Carbon steel AV conveying pumps have the following advantages.

1. Strong conveying capacity

The Carbon steel AV conveying pump has good conveying capacity and is suitable for the conveying requirements of various materials.

2. High degree of automation

The Carbon steel AV conveying pump is easy to realize automatic control, which can reduce manpower input and improve production efficiency. At the same time, its automatic control system can also ensure the stability and reliability of the conveying process.

3. Multi-material transportation

The Carbon steel AV conveying pump can transport a variety of materials including high temperature and rough materials, and has strong applicability.

4. be of simple construction

The structure of the Carbon steel AV conveying pump is relatively simple, the volume is relatively small, and the body is cast at one time, which makes its maintenance relatively easy after machining.

5. easy accessibility

The Carbon steel AV conveying pump operation is relatively simple, which is convenient for operators to get started quickly.

Carbon steel AV conveying pump

Carbon steel AV conveying pumpit has the functions of environmental protection and dust removal, process control, material handling, reduce material loss and save space，the main features are corrosion-resistant, be of simple construction, stand wear and tear, high degree of automation and compact structure，at runtime,Mainly based on the power of compressed air, the continuous transportation of materials is realized by dense-phase low-speed pneumatic transportation.。
