Introduction to Stainless steel AV conveying pump, AV pump advantages, characteristics and principles

Stainless steel AV conveying pumpis a kind of material conveying equipment which uses the energy of air flow to continuously convey powdery and granular materials。The following is to introduce the Stainless steel AV conveying pump:

1、Brief introduction of Stainless steel AV conveying pump

Stainless steel AV conveying pumpis an important part of dense-phase pneumatic conveying system to use the energy of air flow to continuously convey powdery and granular materials，it is mainly composed of ash tank body, level-sensing device, intake pipe, electric cabinet and auxiliary blowing device，it can be used in glass fibre, heavy industry, glass fiber, medicine, ferrous metallurgy and other industries，Multiple pumps can be connected in series, which is suitable for short-distance centralized transportation, and the transportation distance can reach a certain range, which enhances the flexibility of its application、During the normal operation of the system, ash accumulates at the outlet of the electric field of the dust collector above the Stainless steel AV conveying pump, and the fly ash falls into the Stainless steel AV conveying pump installed below under the action of gravity, and then is transported to ash storage through the ash conveying pipeline、The structure is relatively simple, the volume is relatively small, and the body is cast at one time and machined, which makes its maintenance relatively easy、The pump body itself is wear-resistant and corrosion-resistant, and can transport high-temperature and rough materials、Low energy consumption during operation, which helps to reduce the use cost，was developed and designed by Hyde。

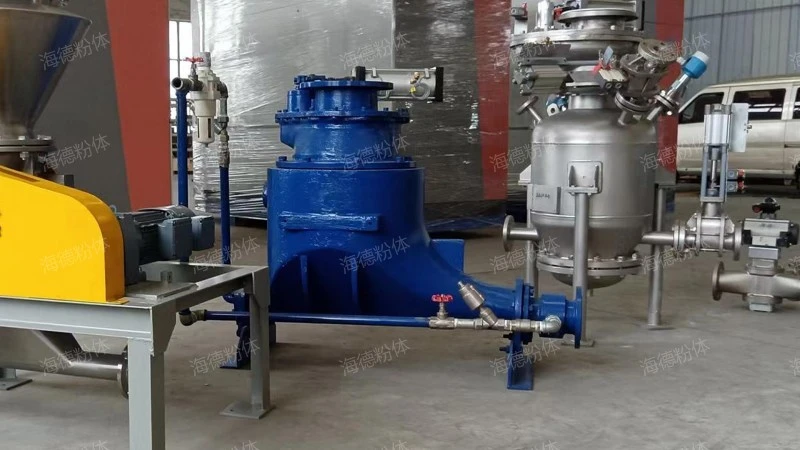

Stainless steel AV conveying pump

2、Stainless steel AV conveying pump explanation video

You can buy Stainless steel AV conveying pump according to your needs and show you product videos.。

Stainless steel AV conveying pump

As you can see from the live video.，Hyde powder is a common Stainless steel AV conveying pump。

3、Stainless steel AV conveying pump application

Stainless steel AV conveying pumpMainly used forprocess control,reduce material loss,material handling,environmental protection and dust removal andprocess control，the main features are good ash-gas ratio, stand wear and tear, flexible installation, easy maintenance and wide applicability，is a common equipment for powder conveying，is a popular Stainless steel AV conveying pump，the advantage is The structure is simple and the quality is excellent, and the maintenance workload of the Stainless steel AV conveying pump is relatively small, which reduces the maintenance cost、Multiple pumps can be connected in series, which is suitable for short-distance centralized transportation, and the transportation distance can reach a certain range, which enhances the flexibility of its application、The pump body itself is wear-resistant and corrosion-resistant, and can transport high-temperature and rough materials、It is suitable for multi-point dry material transportation of most dust collectors、It is easy to realize automatic control, which can reduce manpower input and improve production efficiency. At the same time, its automatic control system can also ensure the stability and reliability of the conveying process。

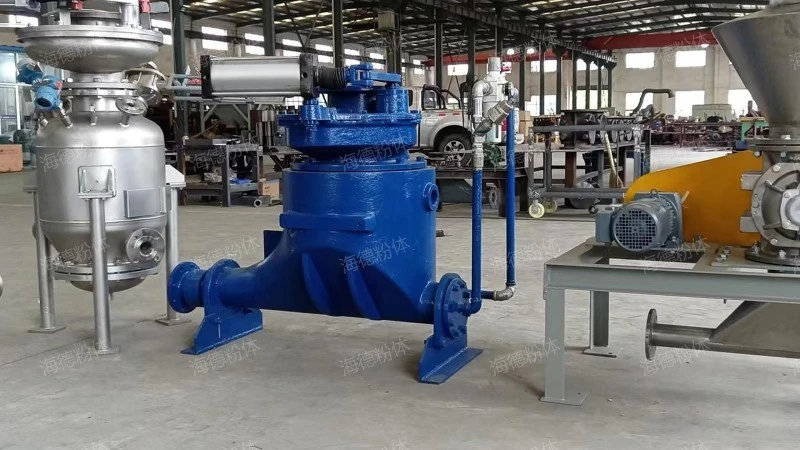

Stainless steel AV conveying pump

4、Structural advantages of Stainless steel AV conveying pump

The Stainless steel AV conveying pump has the following structure

1. Intake pipe

The air intake pipe is a pipe system that provides compressed air to the Stainless steel AV conveying pump. A group of Stainless steel AV conveying pumps usually share one air intake pipe, but auxiliary air intake pipes can be added according to the number of Stainless steel AV conveying pumps. The quality of the air inlet pipeline is required to ensure that the compressed air used for transportation reaches a certain pressure dew point.

2. Feed dome valve

The feeding dome valve is the key component to control the material entering the Stainless steel AV conveying pump. It can be opened when needed, allowing materials to enter the Stainless steel AV conveying pump, and closed when not needed to ensure that materials will not leak.

3. Ash conveying pipeline

Ash conveying pipeline is a pipeline system connecting the Stainless steel AV conveying pump and the terminal ash storage. After being compressed in the Stainless steel AV conveying pump, the materials are transported to the terminal ash storage for storage or further treatment through the ash conveying pipeline.

4. level-sensing device

The material level gauge is usually installed on the feed bin to detect the material in the ash hopper. When the material reaches a certain height, the material level gauge will send a signal to the electric control box to trigger the operation of the Stainless steel AV conveying pump.

5. pressure transducer

The pressure sensor is used to monitor the pressure change in the Stainless steel AV conveying pump system. When the pressure in the system reaches the preset value, the pressure sensor will send a signal to the electric cabinet to control the switch of the intake valve and the running state of the Stainless steel AV conveying pump.

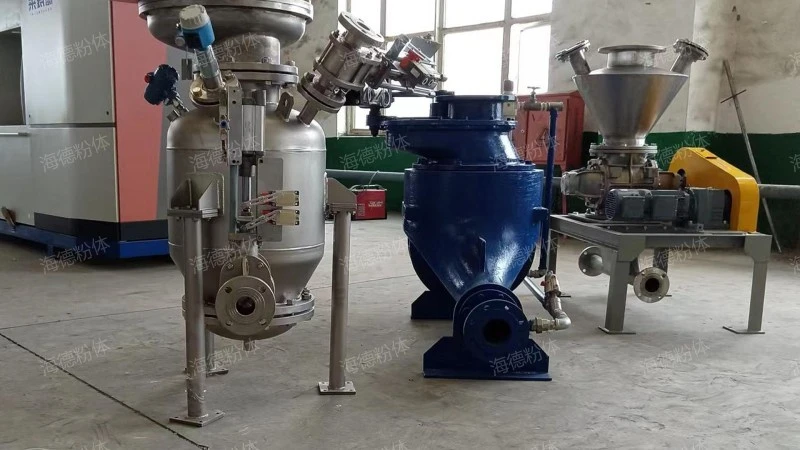

Stainless steel AV conveying pump

5、Working principle of Stainless steel AV conveying pump

Stainless steel AV conveying pumpat the start of the operation,Mainly based on dense-phase low-speed pneumatic conveying. It transports materials at a speed lower than the suspension speed, and the materials move along the pipeline in a continuous dune shape or in a state where air plugs and material plugs are alternately arranged. This conveying mode allows the conveying speed of materials to be much lower than the suspension speed, thus avoiding the standard questions caused by the high speed of materials in traditional pneumatic conveying.，has been favored by more and more customers.。

Stainless steel AV conveying pump

6、Stainless steel AV conveying pump HD real shot

Stainless steel AV conveying pump styles and designs are diverse, specifications and models can be customized according to customer needs, providing high-definition pictures for new and old customers' reference.。

Stainless steel AV conveying pump

Note: All the pictures in this article were taken by Hyde manufacturer.。

Stainless steel AV conveying pumpcompact structure,be of simple construction,strong adjustability,maintenance workload is small,compact structure，widely used in forge, metallurgy, ferrous metallurgy, heavy industry, light industry and other fields，the principle is simple.Mainly based on the power of compressed air, the continuous conveying of powdery materials is realized by dense-phase low-speed pneumatic conveying.。
