What is a AV pump? AV pump specifications, models, and parameters

AV pumpis a common equipment for powder conveying。The following is to introduce the AV pump:

1、Brief introduction of AV pump

AV pumpis an efficient and reliable material conveying equipment，is developed and improved by Hyde。

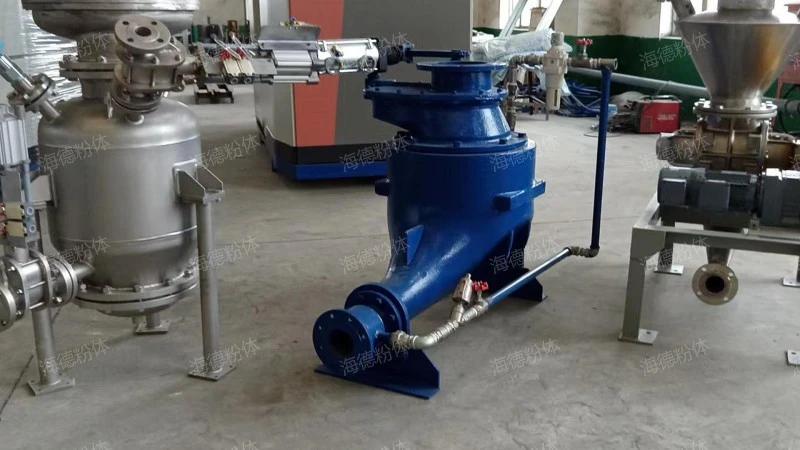

AV pump

2、Functional advantages of AV pump

AV pumps have the following advantages.

1. Low energy consumption

Compared with other types of pumps, the AV pump consumes less energy during operation, which helps to reduce the use cost.

2. Closed conveying system

The AV pump adopts a fully enclosed transportation system, and the materials are transported in a closed pipeline, which effectively prevents the materials from absorbing moisture, fouling or mixing with other impurities during transportation.

3. Strong conveying capacity

The AV pump has good conveying capacity and is suitable for the conveying requirements of various materials.

4. Small size and light weight

The AV pump has the characteristics of stand wear and tear, which is convenient to move and install in different working occasions.

5. High degree of automation

The AV pump is easy to realize automatic control, which can reduce manpower input and improve production efficiency. At the same time, its automatic control system can also ensure the stability and reliability of the conveying process.

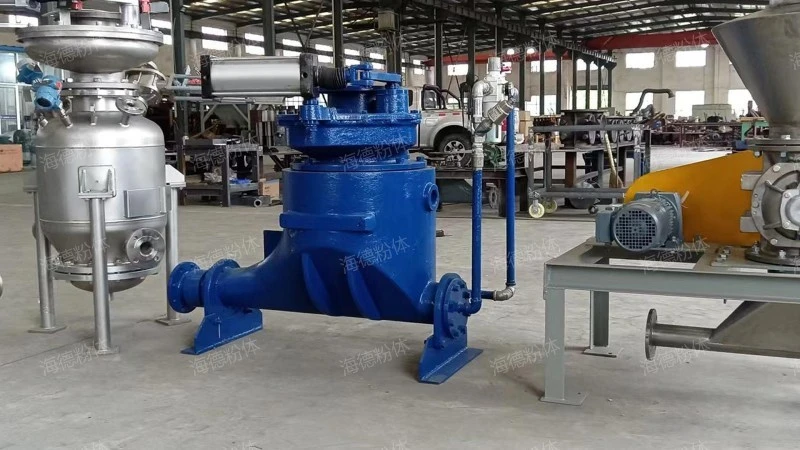

AV pump

3、AV pump field real shot

Speak directly with facts on the spot。

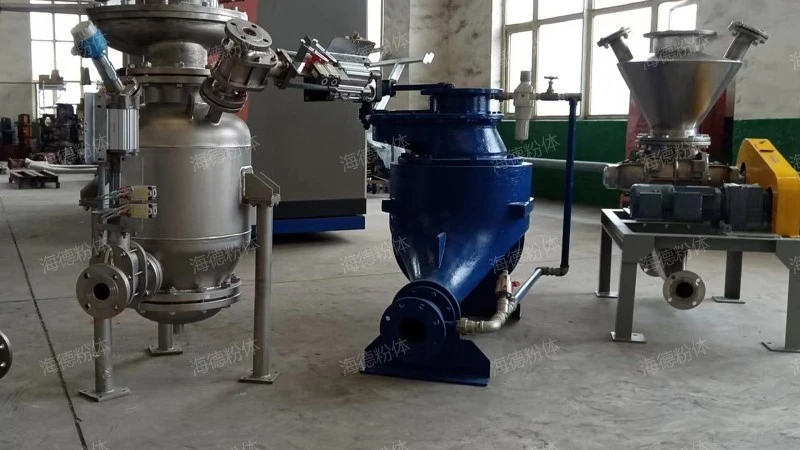

AV pump

As you can see from the live video.，Shandong Haide Fenti Engineering Co., Ltd. Widely used insave space,environmental protection and dust removal,process control,reduce material loss,material handling and so on。

4、AV pump application

AV pumpIt is a product series that integrates save space, environmental protection and dust removal, reduce material loss, process control and material handling，it is widely used insemiconductor,ferrous metallurgy,metallurgy,glass fiber,chemical industry and other industries，multifunctional, with functions such as environmental protection and dust removal, material handling, process control, save space and reduce material loss，the advantage is The structure is simple and the quality is excellent, and the maintenance workload of the AV pump is relatively small, which reduces the maintenance cost、Can keep a good ash-gas ratio in the conveying process and improve the conveying efficiency、The structure is relatively simple, the volume is relatively small, and the body is cast at one time and machined, which makes its maintenance relatively easy、During the normal operation of the system, ash accumulates at the outlet of the electric field of the dust collector above the AV pump, and the fly ash falls into the AV pump installed below under the action of gravity, and then is transported to ash storage through the ash conveying pipeline、It is suitable for multi-point dry material transportation of most dust collectors，support customization。

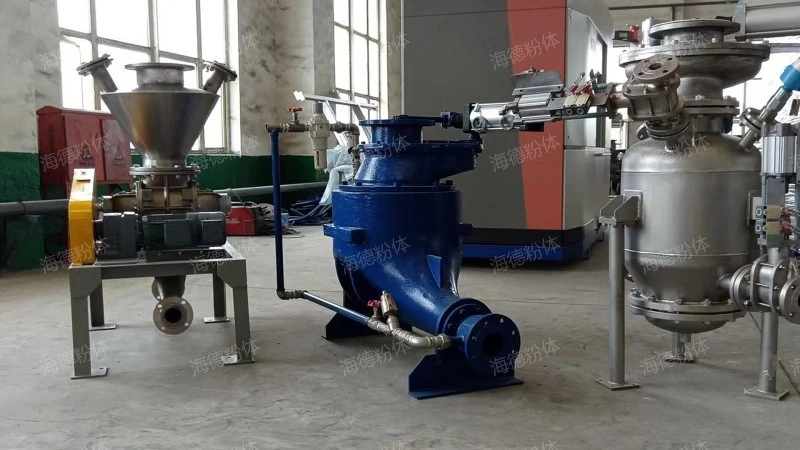

AV pump

5、Structural advantages of AV pump

The AV pump has the following structure

1. level-sensing device

The material level gauge is usually installed on the feed bin to detect the material in the ash hopper. When the material reaches a certain height, the material level gauge will send a signal to the electric control box to trigger the operation of the AV pump.

2. Intake pipe

The air intake pipe is a pipe system that provides compressed air to the AV pump. A group of AV pumps usually share one air intake pipe, but auxiliary air intake pipes can be added according to the number of AV pumps. The quality of the air inlet pipeline is required to ensure that the compressed air used for transportation reaches a certain pressure dew point.

3. Air control box

Each AV pump is equipped with an air control box to control the running state of the AV pump. The air control box controls the switch of the air inlet valve by receiving the signal from the electric control box, so as to realize the adjustment of the air pressure in the AV pump.

4. Feed dome valve

The feeding dome valve is the key component to control the material entering the AV pump. It can be opened when needed, allowing materials to enter the AV pump, and closed when not needed to ensure that materials will not leak.

5. Auxiliary blowing device

The auxiliary blowing device is used to blow the pipeline and the interior of the AV pump during the operation of the AV pump to prevent material blockage and deposition. This helps to keep the AV pump system running smoothly.

AV pump

AV pumpthe product looks beautiful.，widely used in glass fibre, forge, medicine, light industry, building materials and other fields。
